Expanding Your Reach

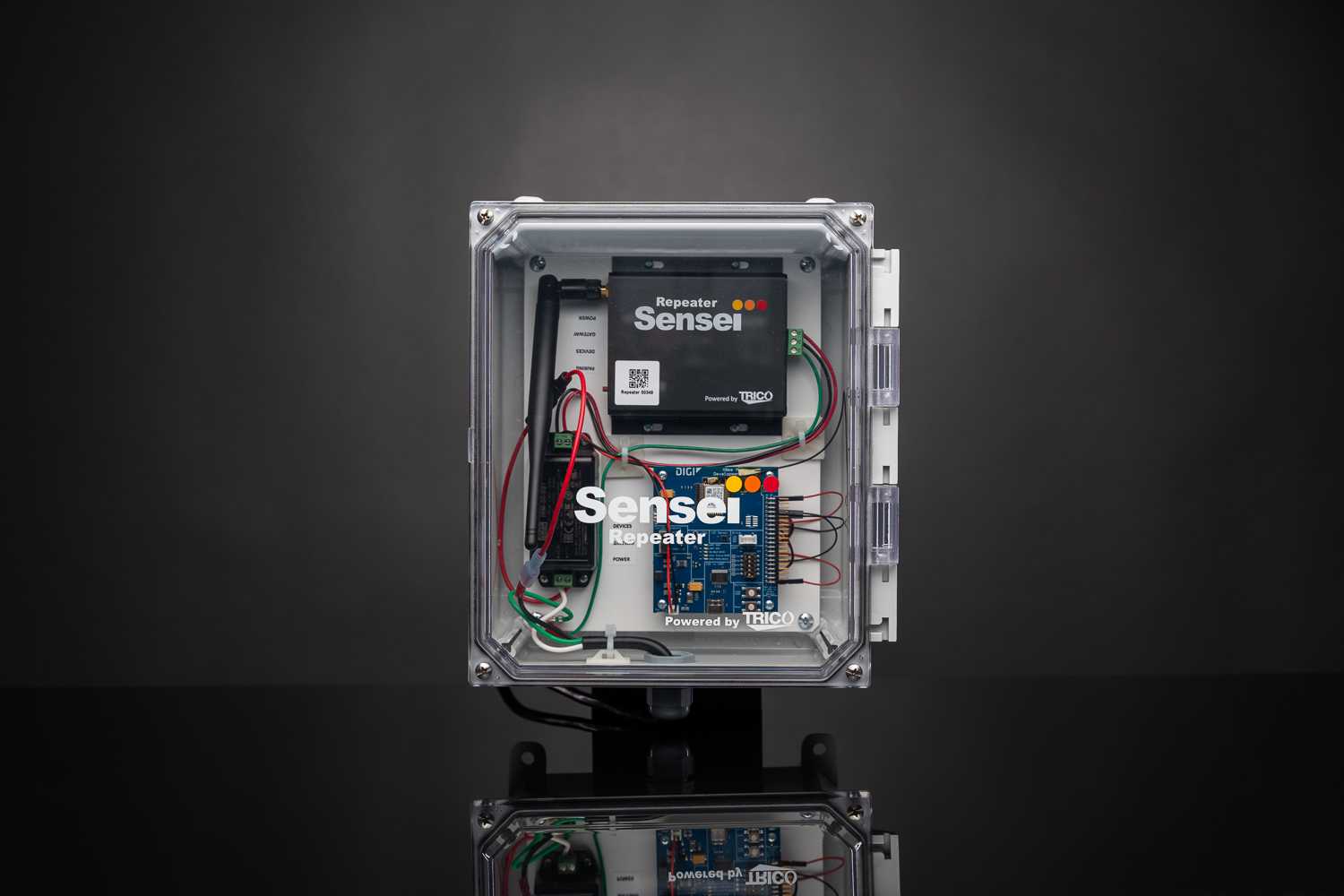

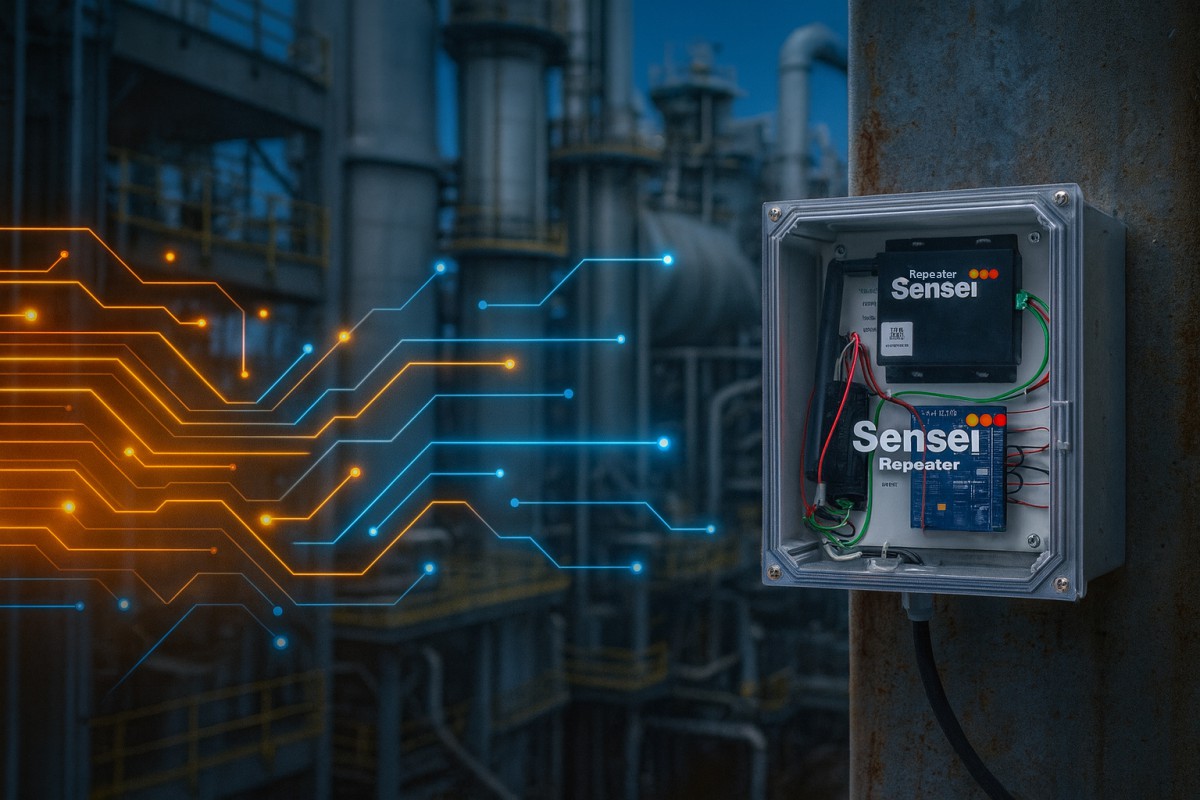

Industrial environments can weaken wireless signals with walls, machinery, and interference. The Sensei Repeater keeps your monitoring reliable by:
Extending Device Capacity
Add more devices to your network where needed.
Expanding Coverage Range
Push your network further into remote or hard-to-reach areas.
Overcoming Obstacles
Maintain signal quality even in environments with heavy metal structures, concrete walls, or high EMI interference.
No Blind Spots in Your Network
- Reliable Zigbee communication across larger facilities.
- Scales seamlessly with additional devices.
- Designed for harsh industrial conditions.
- Works with all Sensei Enabled Devices.
Additional Features
- Real-Time
- Collects real-time data from Sensei Devices.
- Flexible
- Repeaters can connect to other Sensei Repeaters or directly to the Sensei Gateway.
- Expandable
- Expands easily to fit any size facility with multiple pieces of equipment.
Other Specs
| Model | Description | Intrinsically Safe |
|---|---|---|
| 38106 | Sensei, Environmentally Sealed Repeater | No |
| 38126 | Sensei, Intrinsically Safe, Environmentally Sealed Repeater | Yes |
-
PowerSource: 12 VDC or 24 VDC Max Current: 1-2 A Max
-
Dimensions6” x 6” x 2”
-
MaterialPowder Coated Steel
-
Mounting2” Diameter Magnet
-
Wireless2.4GHz - Low power network based on 802.15.4
-
DevicesConnection to 64 devices
-
ProtocolsMQTT
-
LEDIndicates connection to coordinator
-
InstallationIP54, Pollution Degree 3, Outdoor and Indoor
-
Operating Temperature-4° to 104°F (-20° to 40°C)
-
Wireless SecurityDevice Authentication
AES-128 Encrypted Network Joining Scheme
Pre-Shared Key and Rota􀆟ng Session Key -
ETL CertificationClass I, Zone 2, AEx ec IIC T4 Gc
Class I, Division 2, Groups A, B, C, D T4
Ex ec IIC T4 Gc | -20°C ≤ Ta ≤ +40°C -
IECEx CertificationEx ec IIC T4 Gc
-
ATEX CertificationEx II 3 G Ex ec IIC T4 Gc | -20°C ≤ Ta ≤ +40°C
-
UKEX CertificationEx II 3 G Ex ec IIC T4 Gc | -20°C ≤ Ta ≤ +40°C
FAQ's
Explore the System
Sensei isn't just a single tool, it's a complete ecosystem that works together to track, transmit, and interpret your equipment data. From smart devices to an intuitive dashboard, each component plays a part in giving you clear, real-time view of your asset health.
Data Collection at the Asset
Effortless, accurate, always on. Sensei devices quietly monitor assets without walkdowns or clipboards. They ensure every detail at the asset is collected and recorded.
- Non-intrusive monitoring
- Quick, easy installation
- Labor-light operation
Secure Data Transmission from Plant Floor to Cloud
Once collected, data moves effortlessly from the plant floor to the cloud. Sensei devices connect through Gateways and Repeaters to transmit readings securely and in real time. And when infrastructure isn’t in place, the Mobile App ensures nothing is lost, storing information offline and syncing automatically once connectivity is restored.
- Bluetooth pairing
- Seamless wireless network
- Reliable, secure connections
- Built to scale across the facility
Web App Turns Data into Action
The Sensei Web App transforms raw data into clarity you can act on. Dashboards, alerts, and trend views reveal issues early, giving managers, engineers, and technicians the insights they need to prioritize actions and prevent failures. By replacing guesswork with condition-based insights, the Web App helps extend asset life and improve performance across the facility.
- ​​​Intuitive dashboards and trends
- Alerts for early warnings
- Prioritizes maintenance actions
