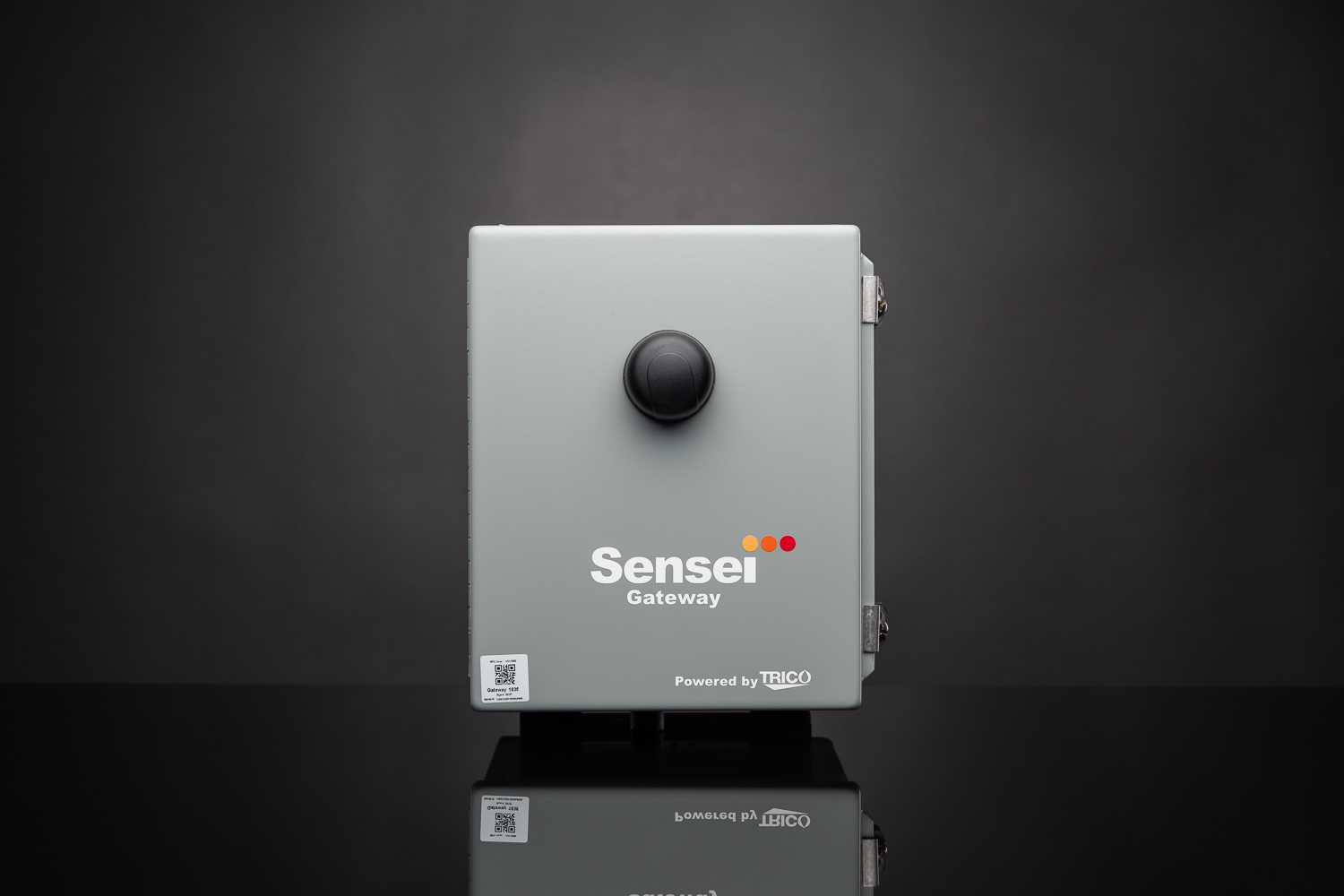

Reliable Industrial Gateway for Condition Monitoring Data Transmission
Connectivity You Count On. Secure. Reliable. Scalable.
The Gateway ensures your condition monitoring data always flows securely to where it matters most. It’s built for industrial environments, easy to deploy, and capable of supporting hundreds of Sensei Devices so your monitoring scales with your facility.
Key Benefits:
- Secure Zigbee to cloud data transfer.
- Ethernet and cellular options for flexibility.
- Scales up to 250 devices per network.
- Provides near real-time equipment visibility.
Sensei Gateway Connectivity Options: Ethernet and Cellular Models
Choosing the Right Model for Your Facility
The Gateway is available in two models to match your infrastructure:
Ethernet/LAN Gateway for Hardwired Industrial Networks
- Connection Type
- Hardwired network port
- Ideal For
- Facilities with reliable, secure in-house network
- Setup Time
- Depends on the availability of Ethernet/LAN connection location(s)
- Reliability
- Consistent in-network performance, less interference
- Mobility
- Fixed location, need to make sure an additional connection is available
- Data Costs
- No ongoing fees
- Security
- Protected by plant IT infrastructure
Cellular Gateway for Remote Areas and Wireless Connectivity
- Connection Type
- Wireless via SIM card
- Ideal For
- Remote areas or locations without stable internet
- Setup Time
- Fast deployment anywhere with cellular coverage, no cables
- Reliability
- Independent of plant network, potential bogged down by connectivity issues
- Mobility
- Flexible relocation without rewiring, just maintain a strong signal strength
- Data Costs
- Cellular data plan required
- Security
- End-to-end encryption over cellular
Additional Features
- Real-Time
- Collects real-time data from Sensei Devices.
- Secure
- Securely receives data and transmits it to the cloud.
Other Specs
| Model | Description | Cellular | Intrinsically Safe |
|---|---|---|---|
| 38107 | Sensei, Environmentally Sealed Gateway | No | No |
| 38108 | Sensei, Environmentally Sealed Cellular Gateway | Yes | No |
| 38127 | Sensei, Intrinsically Safe, Environmentally Sealed Gateway | No | Yes |
-
PowerSource: 12 VDC or 24 VDC Max Current: 1-2 A Max
-
Dimensions6” x 6” x 2”
-
MaterialPowder Coated Steeel
-
Ethernet10/100 Mbps
-
Wireless2.4GHz - Low power network based on 802.15.4
-
Wireless Range100 m
-
Devices250 Supported per Network
-
InstallationIP54, Pollution Degree 3, Outdoor and Indoor
-
Operating Temperature-4° to 104°F (-20° to 40°C)
-
Wireless SecurityDevice Authentication
AES-128 Encrypted Network Joining Scheme
Pre-Shared Key and Rotating Session Key
AES-128 Encrypted Secured Data Transmission -
ETL CertificationClass I, Zone 2, AEx ec IIC T4 Gc
Class I, Division 2, Groups A, B, C, D T4
Ex ec IIC T4 Gc | -20°C ≤ Ta ≤ +40°C -
IECEx CertificationEx ec IIC T4 Gc
-
ATEX CertificationEx II 3 G Ex ec IIC T4 Gc | -20°C ≤ Ta ≤ +40°C
-
UKEX CertificationEx II 3 G Ex ec IIC T4 Gc | -20°C ≤ Ta ≤ +40°C
Frequently Asked Questions About Sensei Gateway
Explore the Sensei System
Sensei isn't just a single tool, it's a complete ecosystem that works together to track, transmit, and interpret your equipment data. From smart devices to an intuitive dashboard, each component plays a part in giving you clear, real-time view of your asset health.

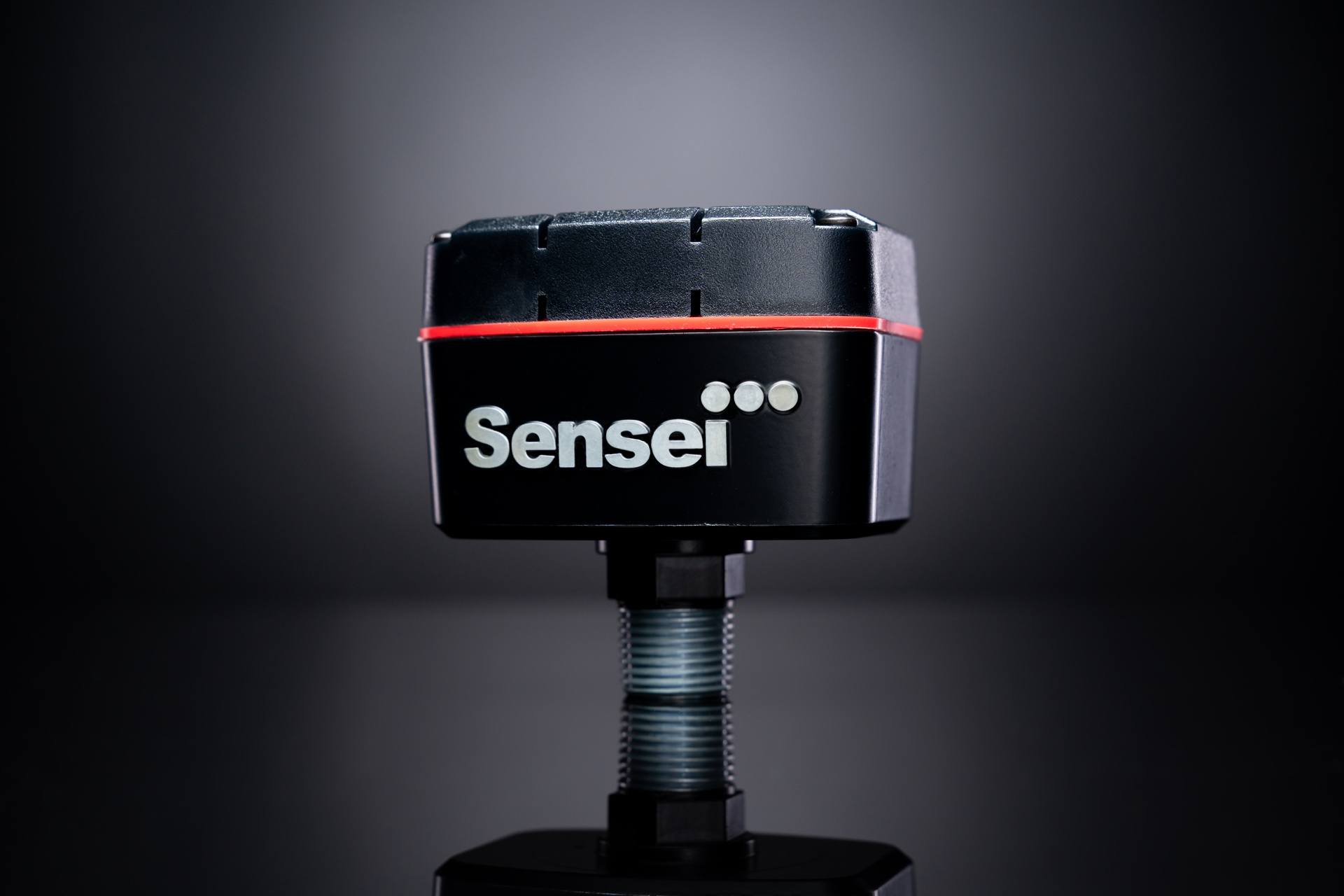

Data Collection at the Asset
Effortless, accurate, always on. Sensei devices quietly monitor assets without walkdowns or clipboards. They ensure every detail at the asset is collected and recorded.
- Non-intrusive monitoring
- Quick, easy installation
- Labor-light operation

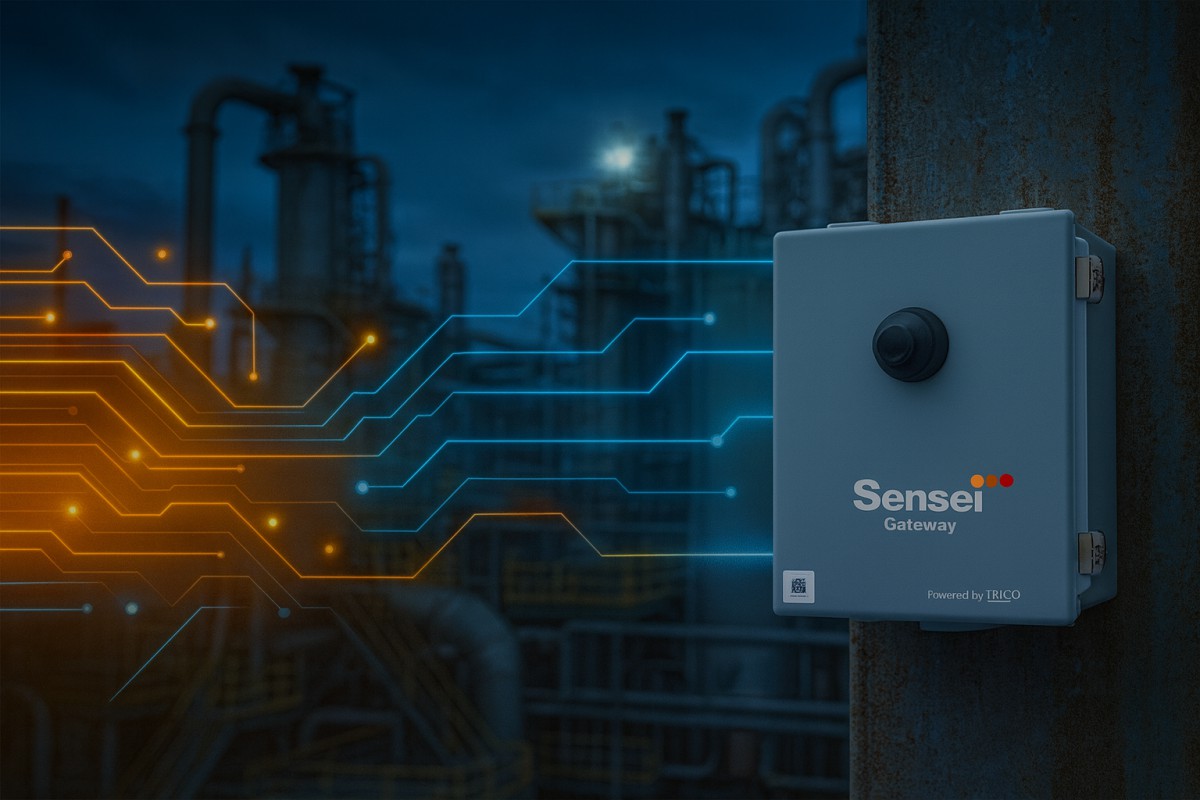

Secure Data Transmission from Plant Floor to Cloud
Once collected, data moves effortlessly from the plant floor to the cloud. Sensei devices connect through Gateways and Repeaters to transmit readings securely and in real time. And when infrastructure isn’t in place, the Mobile App ensures nothing is lost, storing information offline and syncing automatically once connectivity is restored.
- Bluetooth pairing
- Seamless wireless network
- Reliable, secure connections
- Built to scale across the facility
Web App Turns Data into Action
The Sensei Web App transforms raw data into clarity you can act on. Dashboards, alerts, and trend views reveal issues early, giving managers, engineers, and technicians the insights they need to prioritize actions and prevent failures. By replacing guesswork with condition-based insights, the Web App helps extend asset life and improve performance across the facility.
- Intuitive dashboards and trends
- Alerts for early warnings
- Prioritizes maintenance actions
