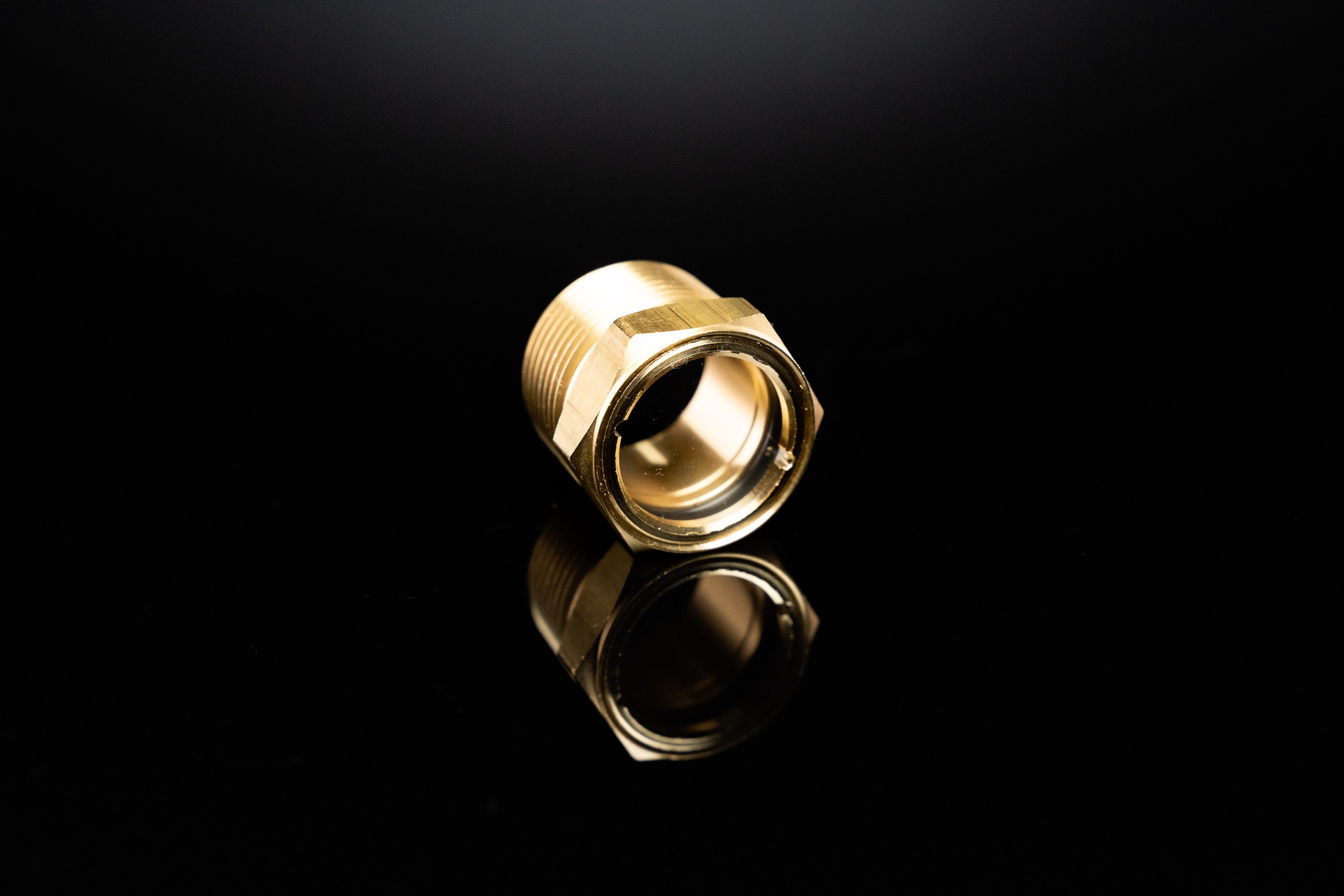

Viewport - Glass without Baffle

Viewports can be used to monitor oil levels within a sump housing and provide visual inspection of lubricant condition. They can also be used to display fluid motion or mechanical movements.

Contact Us to Purchase

Additional Features

Economical

The lenses can be removed in the field for cleaning, rather than purchasing and installing a new viewport.

Corrosion Resistance

Viewports are offered in brass- or zinc-plated steel bodies.

Variety

Available in a variety of thread sizes

Other Specs

Model Description Material Connection Dim A (in) Dim B (in) Dim C (in)
34320 Viewport Steel 1/2 NPT 7/8 1/2 1-3/32
34321 Viewport Steel 3/4 NPT 1-1/8 3/4 1-1/8
34322 Viewport Steel 1 NPT 1-5/16 1 1-1/4
34323 Viewport Steel 1-1/4 NPT 1-3/4 1-1/4 1-5/16
34324 Steel 1-1/2 NPT 2 1-1/2 1-11/32
34351 Viewport Brass 1/2 NPT 7/8 1/2 1-3/32
34352 Brass 3/4 NPT 1-1/8 3/4 1-1/8
34353 Viewport Brass 1 NPT 1-5/16 1 1-1/4
34354 Viewport Brass 1-1/4 NPT 1-3/4 1-1/4 1-5/16
34355 Viewport Brass 1-1/2 NPT 2 1-1/2 1-11/32

Trico Constant Level Oilers Product Line Overview

Watch on YouTube

New Features Overview | Orbital Oil Analysis Reporting

Watch on YouTube

Related Products

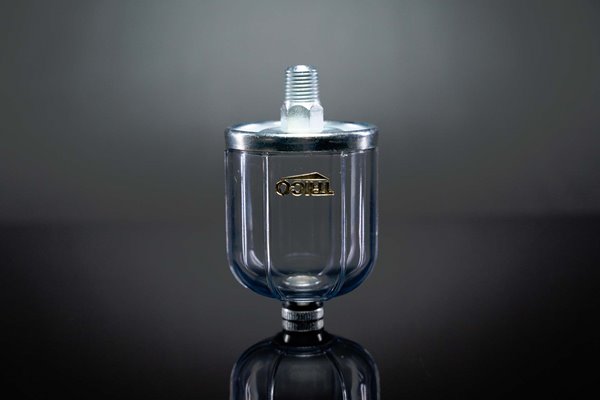

Sump Bottles

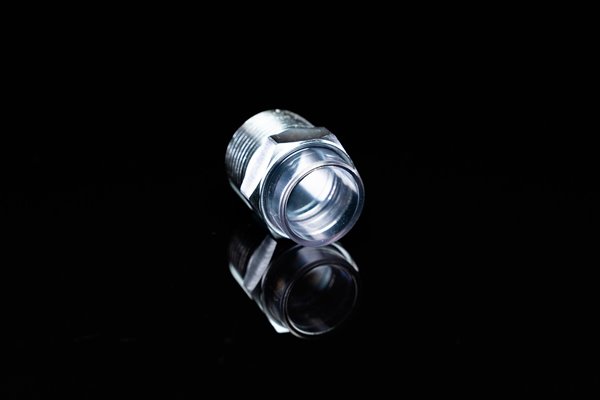

Viewports - 3D Plastic Lens
API Sump Bottles

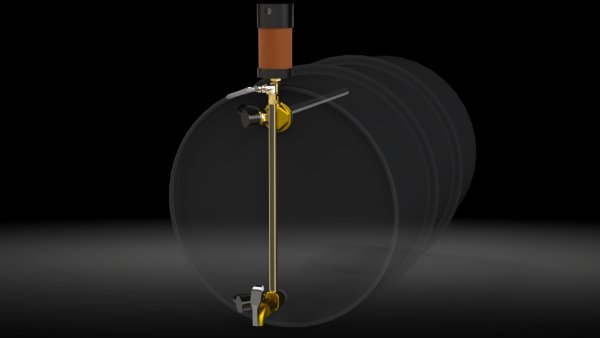

Drum Liquid Level Gauges

Learn More From Lubricology

Protecting Your Equipment

  • Constant Level Oilers
  • Filtration
  • Lifecycle
  • Particulate Contamination
  • Application
  • Desiccant Breathers
  • Moisture
  • Oil Analysis
  • Oil Sampling
  • Contamination Control
  • Oil Level
12.08.2020 Dan Freeland

Protecting Your Equipment

I recently looked at the analyst ratings of the tens of thousands of samples processed through our lab in 2020. I took all the samples related to bearings, gears, and hydraulic systems and summarized the analyst’s rating based on the test results. One thing is clear. Reliability and maintenance personnel continue to struggle with maintaining the quality of their lubricant. 35% of samples claim a Serious/Critical status, 27% proceed with caution, and only 38% are considered normal.

API Standard Drives BS&W Bowl Facelift

  • Sump Bottle
  • Water Contamination
  • Particulate Contamination
12.06.2022 Dan Freeland

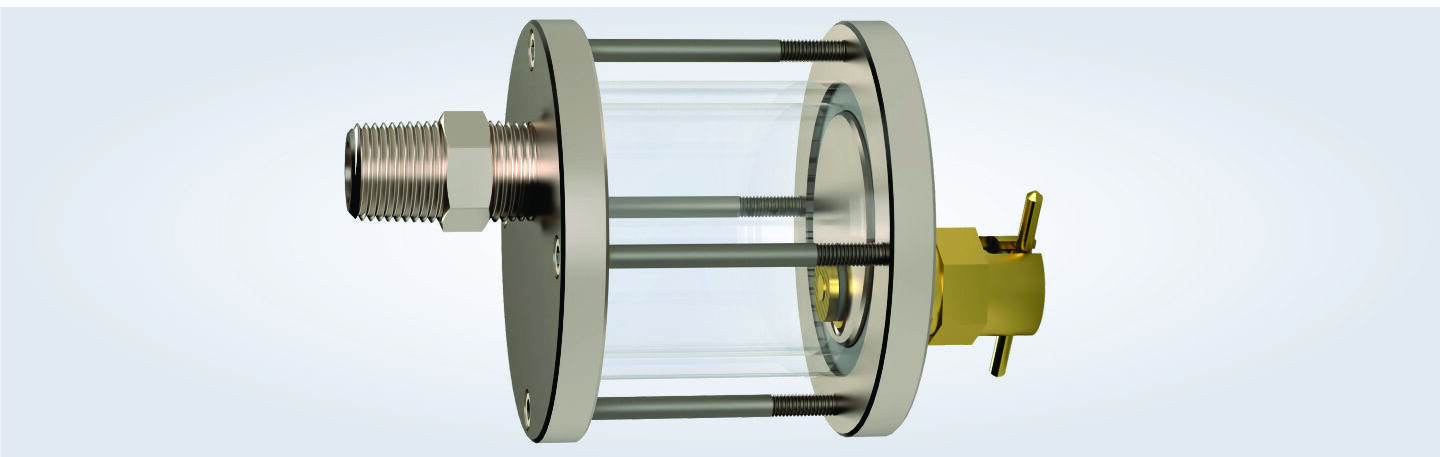

API Standard Drives BS&W Bowl Facelift
