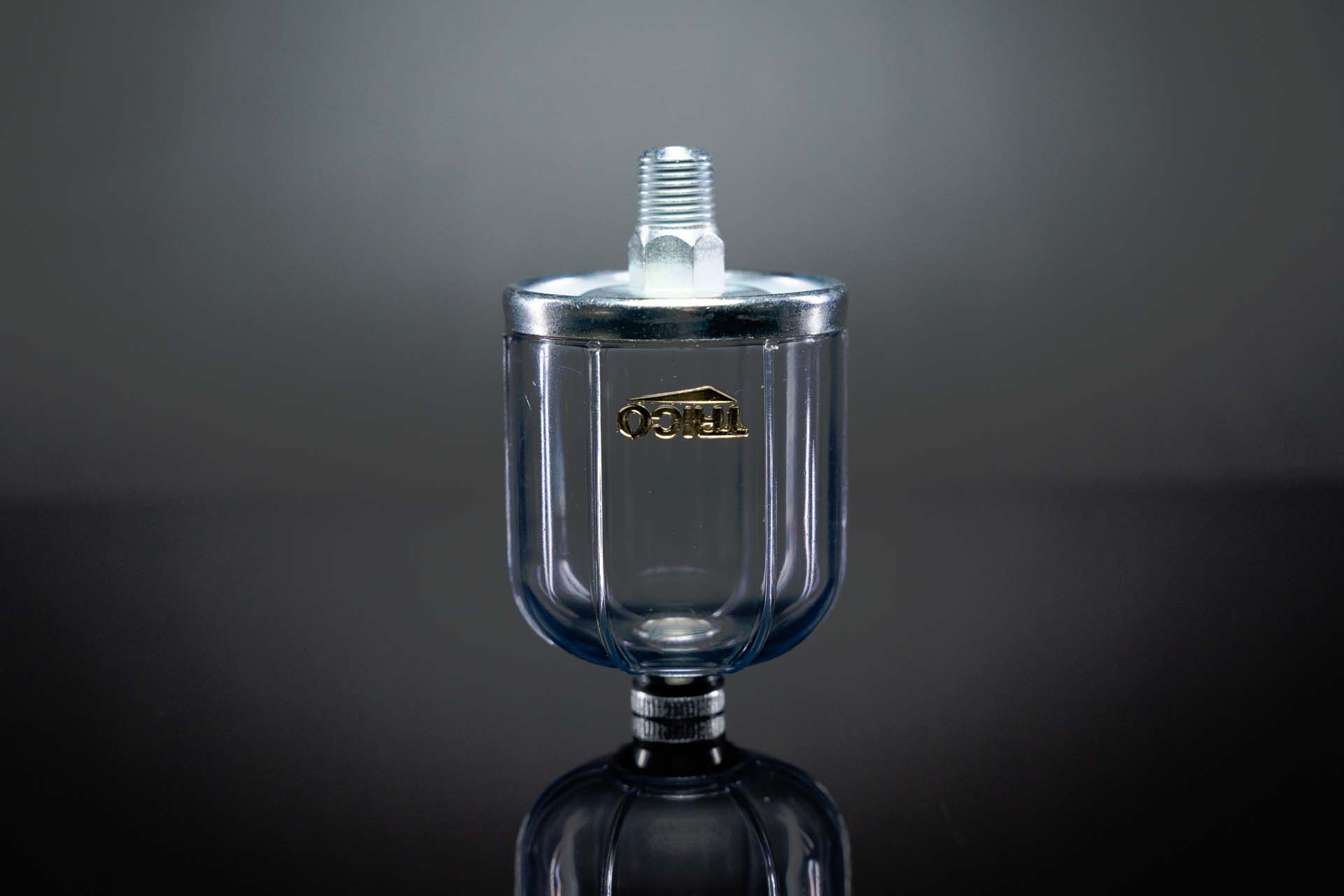

Sump Bottles
Trico Sump Bottles are used as collection chambers on bearing housings and other oil sump applications. They collect water and contaminants and have a drain plug for easy inspection and removal of fluids.
Feature
Simple to Use
Easy open/close drain valve
Additional Features
- Durable Construction
Plastic reservoirs have reinforcing ribs for long life and impact resistance.
- Leak Proof
Copper brazing of all steel connections provides long life and leak proof design.
- Corrosion Resistance
Zinc plating resists corrosion.
Other Specs
| Model | Description | Connection (NPT) | Capacity | Dim A (in) | Dim B (in) |
|---|---|---|---|---|---|
| 31321 | Sump Bottle | 1/8 | 2 oz | 1-15/16 | 2-1/16 |
| 31341 | Sump Bottle | 1/8 | 4 oz | 2-5/16 | 2-7/8 |
| 31342 | Sump Bottle | 1/4 | 4 oz | 2-5/16 | 2-7/8 |
| 31382 | Sump Bottle | 1/4 | 8 oz | 2-5/8 | 4 |
-
Maximum Operating Temperature165ºF Continuous
-
ReservoirButyrate Plastic
-
GasketBuna-N
-
MaterialsSteel and Brass
-
FinishBright Zinc Plated
