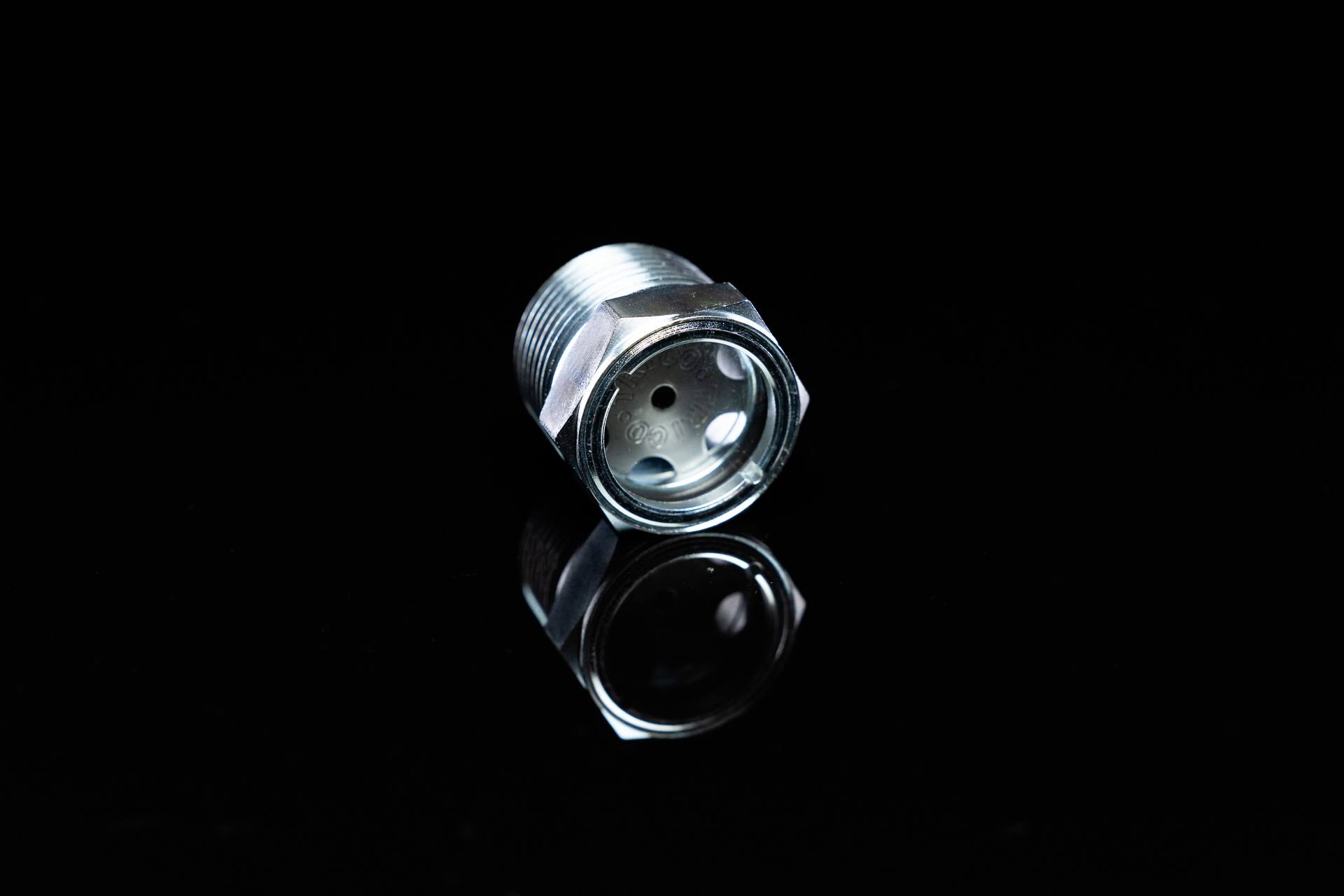

Viewports - Glass with Baffle

Viewports can be used to monitor oil levels within a sump housing and provide visual inspection of lubricant condition. Viewports with Baffles are used in turbulent conditions.

Contact Us to Purchase

Additional Features

Economical

The lenses can be removed in the field for cleaning, rather than purchasing and installing a new viewport.

Corrosion Resistance

Viewports are offered in brass- or zinc-plated steel bodies.

Variety

Available in a variety of thread sizes

Other Specs

Model Description Material Connection Dim A (in) Dim B (in) Dim C (in)
34305 Viewport Steel 1/2 NPT 7/8 1/2 1-3/32
34306 Viewport Steel 3/4 NPT 1-1/8 3/4 1-1/8
34307 Viewport Steel 1 NPT 1-5/16 1 1-1/4
34308 Viewport Steel 1-1/4 NPT 1-3/4 1-1/4 1-5/16
34309 Viewport Steel 1-1/2 NPT 2 1-1/2 1-11/32
34341 Viewport Brass 1/2 NPT 7/8 1/2 1-3/32
34342 Viewport Brass 3/4 NPT 1-1/8 3/4 1-1/8
34343 Viewport Brass 1 NPT 1-5/16 1 1-1/4
34344 Viewport Brass 1-1/4 NPT 1-3/4 1-1/4 1-5/16
34345 Viewport Brass 1-1/2 NPT 2 1-1/2 1-11/32
