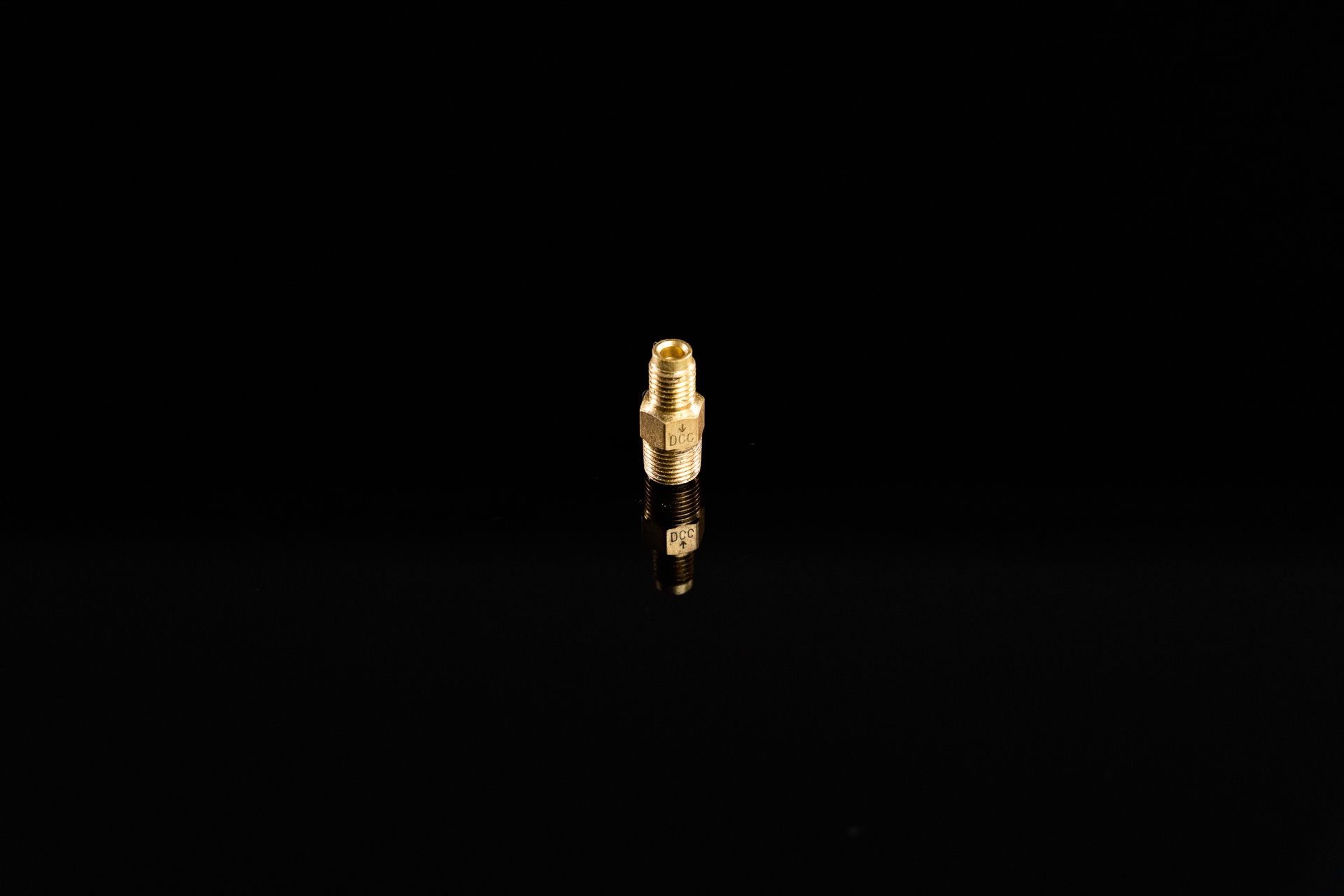

Control Units
Control Units are used with all continuous system electric pumps to provide precise control of the lubricant to each lubrication point. Because pump flow is continuous, an internal check valve is not required.
Special Feature
Flow Rates
Flow Rate 5/0
Relative Flow Delivery: 1
Typical Systeme Type: Continuous Loss
Flow Rate 4/0
Relative Flow Delivery: 2
Typical Systeme Type: Continuous Loss
Flow Rate 3/0
Relative Flow Delivery: 4
Typical Systeme Type: Continuous Loss/Cyclic
Flow Rate 4
Relative Flow Delivery: 256
Typical Systeme Type: Continuous Re-Circulating
Flow Rate 5
Relative Flow Delivery: 512
Typical Systeme Type: Continuous Re-Circulating
Flow Rate 00
Relative Flow Delivery: 8
Typical Systeme Type: Continuous Loss/Cyclic
Flow Rate 0
Relative Flow Delivery: 16
Typical Systeme Type: Continuous Loss/Cyclic
Flow Rate 1
Relative Flow Delivery: 32
Typical Systeme Type: Cyclic/Continuous Re-Circulating
Flow Rate 2
Relative Flow Delivery: 64
Typical Systeme Type: Cyclic/Continuous Re-Circulating
Flow Rate 3
Relative Flow Delivery: 128
Typical Systeme Type: Cyclic/Continuous Re-Circulating
Other Specs
| Model | Description | Flow Rate | Size |
|---|---|---|---|
| DCC-0 | Control Unit | 0 | 5/16-24 x 1/8NPT |
| DCC-00 | Control Unit | 00 | 5/16-24 x 1/8NPT |
| DCC-1 | Control Unit | 1 | 5/16-24 x 1/8NPT |
| DCC-2 | Control Unit | 2 | 5/16-24 x 1/8NPT |
| DCC-3/0 | Control Unit | 3/0 | 5/16-24 x 1/8NPT |
| DCC-4 | Control Unit | 4 | 5/16-24 x 1/8NPT |
| DCC-4/0 | Control Unit | 4/0 | 5/16-24 x 1/8NPT |
| DCC-5/0 | Control Unit | 5/0 | 5/16-24 x 1/8NPT |
| DCC-5M | Control Unit | 5 | M8x1.0x1/8BSPT |
| DSC-0 | Control Unit | 0 | 5/16-24 x 5/16-24 |
| DSC-00 | Control Unit | 00 | 5/16-24 x 5/16-24 |
| DSC-1 | Control Unit | 1 | 5/16-24 x 5/16-24 |
| DSC-1M | Control Unit | 1 | M8x1.0 x M8x1.0 |
| DSC-2 | Control Unit | 2 | 5/16-24 x 5/16-24 |
| DSC-2M | Control Unit | 2 | M8x1.0 x M8x1.0 |
| DSC-3/0 | Control Unit | 3/0 | 5/16-24 x 5/16-24 |
| DSC-3M | Control Unit | 3 | M8x1.0 x M8x1.0 |
| DSC-4 | Control Unit | 4 | 5/16-24 x 5/16-24 |
| DSC-4/0 | Control Unit | 4/0 | 5/16-24 x 5/16-24 |
| DSC-5 | Control Unit | 5 | 5/16-24 x 5/16-24 |
| DTC-00 | Control Unit | 00 | 1/8NPT x 1/8NPT |
| DTC-1 | Control Unit | 1 | 1/8NPT x 1/8NPT |
| DTC-1M | Control Unit | 1 | 1/8BSPTx1/8BSPT |
| DTC-2 | Control Unit | 2 | 1/8NPT x 1/8NPT |
| DTC-2M | Control Unit | 2 | 1/8BSPTx1/8BSPT |
| DTC-3 | Control Unit | 3 | 1/8NPT x 1/8NPT |
| DTC-3/0 | Control Unit | 3/0 | 1/8NPT x 1/8NPT |
| DTC-4/0 | Control Unit | 4/0 | 1/8NPT x 1/8NPT |
| DTC-5 | Control Unit | 5 | 1/8NPT x 1/8NPT |
| DTC-5/0 | Control Unit | 5/0 | 1/8NPT x 1/8NPT |
