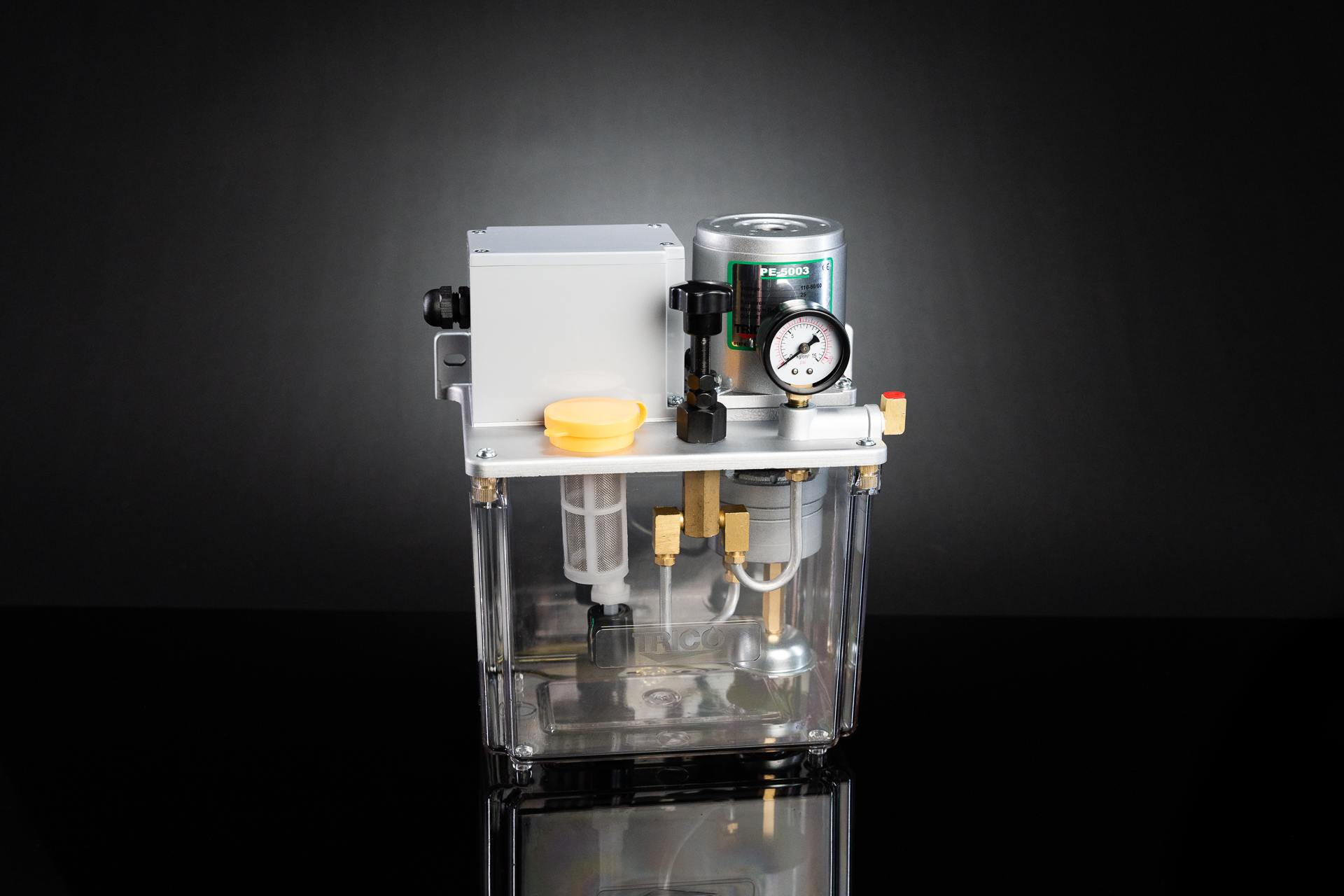

PE-50 Series

The continuous system pumps are designed for applications where lubrication of critical components is needed on a continual basis, rather than on a timed basis. Using control units, these pumps provide lubricant at flow rates of 250 cc/min. Common applications include injection molding, printing presses, punch presses, and milling machines.

Additional Features

Low Level Indication: Standard float switch provides signal when lubricant level is low
Durable Reservoirs: Easy view plastic reservoir on 3-liter models, steel reservoir with sight gauge on 6-, 8-, and 20-liter reservoirs
Return to Tank Port: Return to tank port available on 6-, 8-, and 20-liter models for returning unused oil to reservoir
Pressure Gauge: Pressure gauge provides real time monitoring of the system lubricant delivery
Safety Relief Valve: Safety relief valve assures reliable performance
Easy Filling: Large fill plug simplifies adding or changing lubricant
Oil Filter: Convenient drop-in filter in fill port keeps oil clean
Accessories: These pumps use control units in single or multiple point applications. Control units, fittings, and accessories are available to create a central lubrication system.

Other Specs

Model	Description	Style	Reservoir Material	Reservoir Capacity (liters)	Pressure Switch	Output Volume (cc/min)
PE-5003	Continuous Pump	Without Return to Tank Port	Plastic	3	Yes	250
PE-5006	Continuous Pump	Without Return to Tank Port	Metal	6	Yes	250
PE-5008	Continuous Pump	Without Return to Tank Port	Metal	8	Yes	250
PE-5020	Continuous Pump	Without Return to Tank Port	Metal	20	Yes	250
PE-5206	Continuous Pump	With Return to Tank Port	Metal	6	Yes	250
PE-5208	Continuous Pump	With Return to Tank Port	Metal	8	Yes	250
PE-5220	Continuous Pump	With Return to Tank Port	Metal	20	Yes	250

Description

Continuous Pump

Style

Without Return to Tank Port

Reservoir Material

Plastic

Reservoir Capacity (liters)

Pressure Switch

Yes

Output Volume (cc/min)

250
