FM-6 Ferrogram Maker

The FM-6 dual slide maker is used in the first step of Analytical Ferrography. For greater productivity, the FM-6 is designed with two independent stations that allow two samples to be prepared concurrently.

Contact us to Purchase


Independent Stations

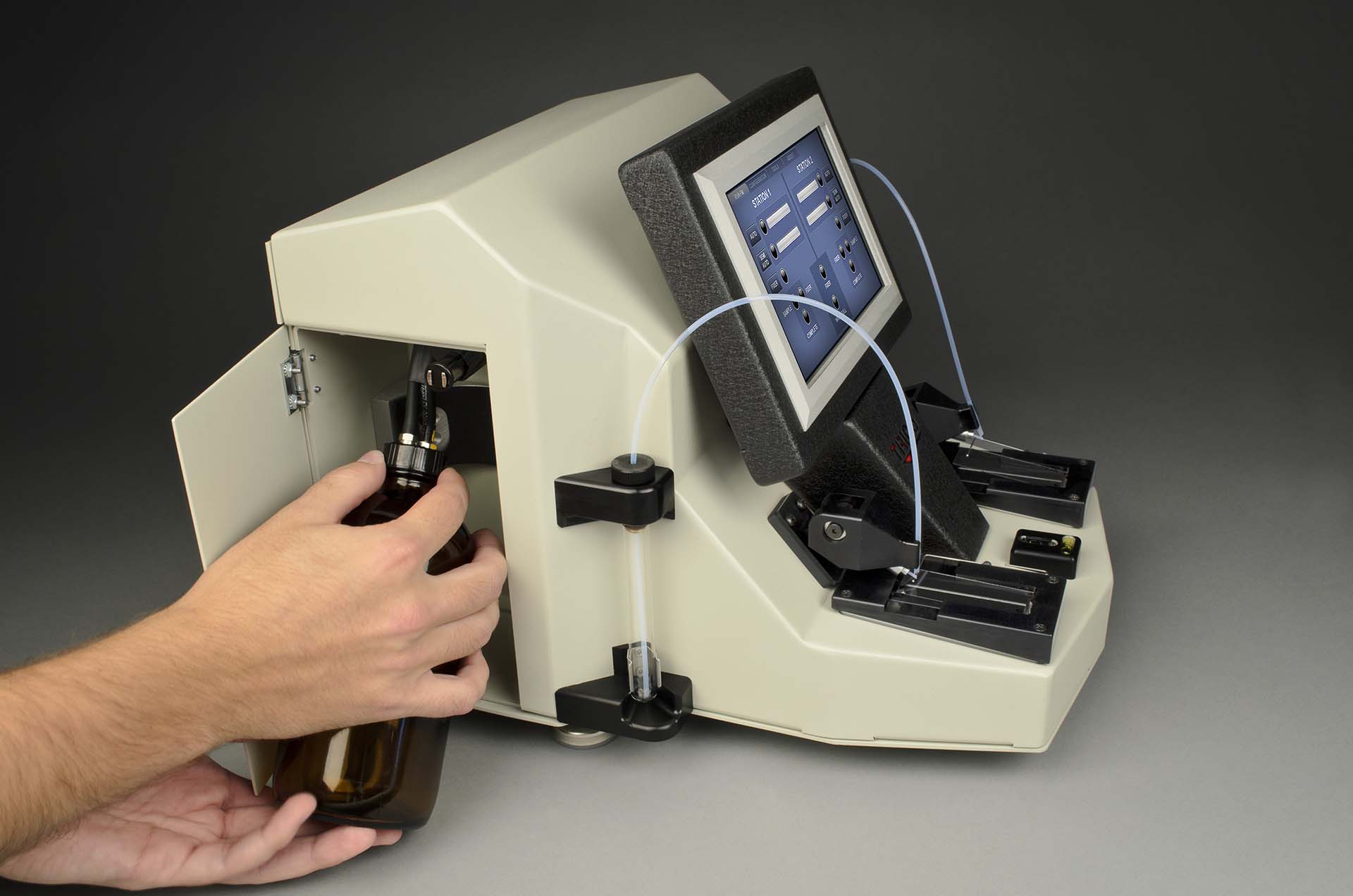

Each station includes a holder that accurately positions a slide at a slight incline over a powerful magnet, allowing particles to deposit from largest to smallest on a Ferrogram. This deposition pattern provides good resolution of large and small particles which facilitates in a diagnosis of potential wear problems.


Advanced Design

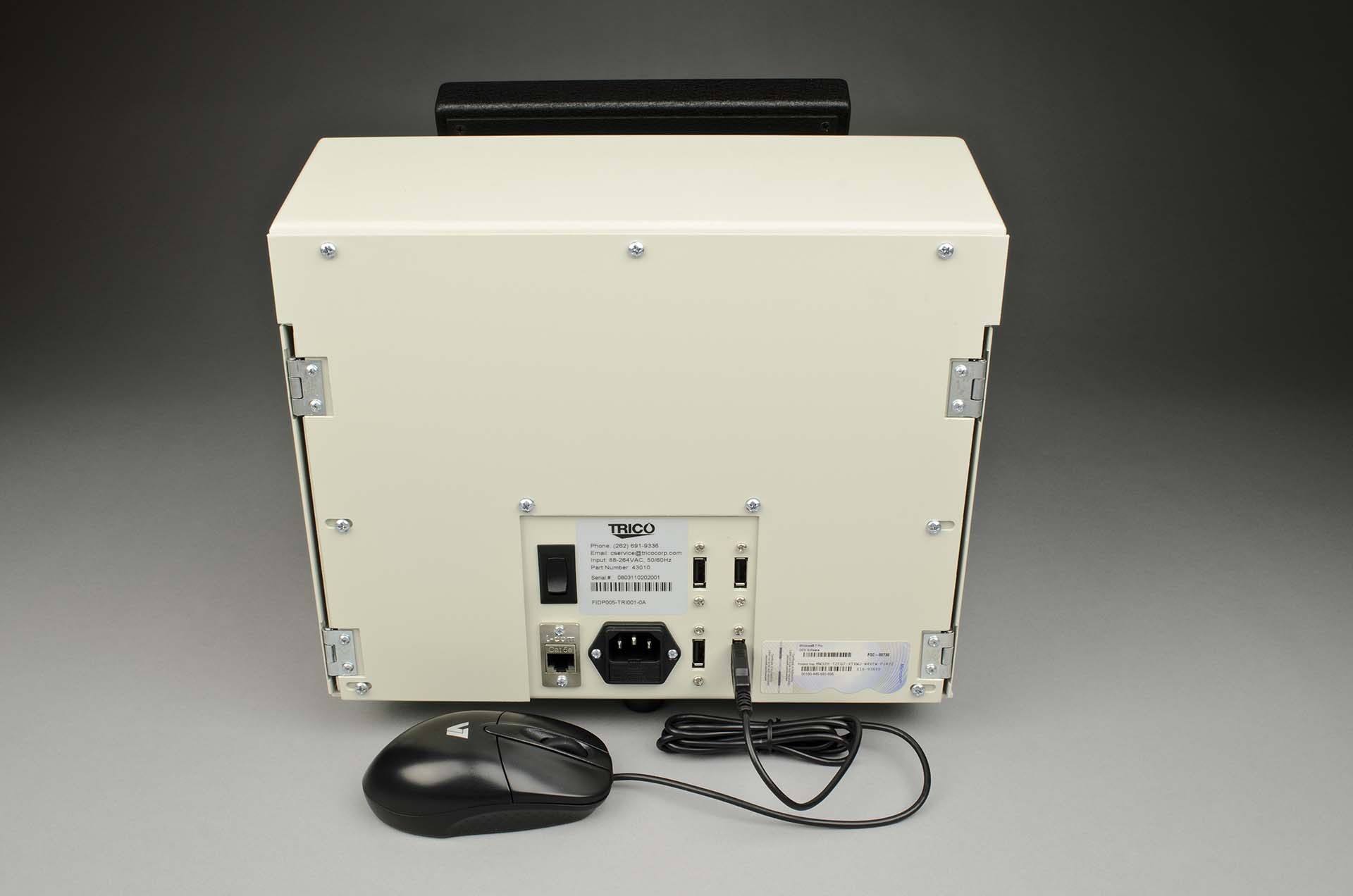

The FM-6 features an interactive 7″ LCD touch screen and USB and Ethernet ports so you can easily plug in a keyboard or mouse, access useful reports on the web, and connect it to our other Ferrography instruments like DR-7 Direct Reading Ferrograph and the FS-6 Ferroscope.

Additional Features

Multiple Operating Modes
Operating modes consist of automatic, semi-automatic, or manual at the operator’s option
Automatic operation releases labor for other tasks
Saves Time
Simultaneously produces two Ferrograms in less than 20 minutes
Ferrograms are transparent, allowing differentiation of metallic, organic, and non-metallic particles for easy diagnosis.
Quick Interpretation
Particles are sorted by magnetic susceptibility and size-enabling quick interpretation with very little particle stacking.

Other Specs

  • Depth
  • Width
  • Height
  • Power
    100-240 V 50/60 HZ
  • Comm-Port
    2 x USB 2.0
  • Operating System
    Windows 10 IoT
  • Memory
    64 GB Flash
  • Ethernet Connection
    RJ45 cat 5

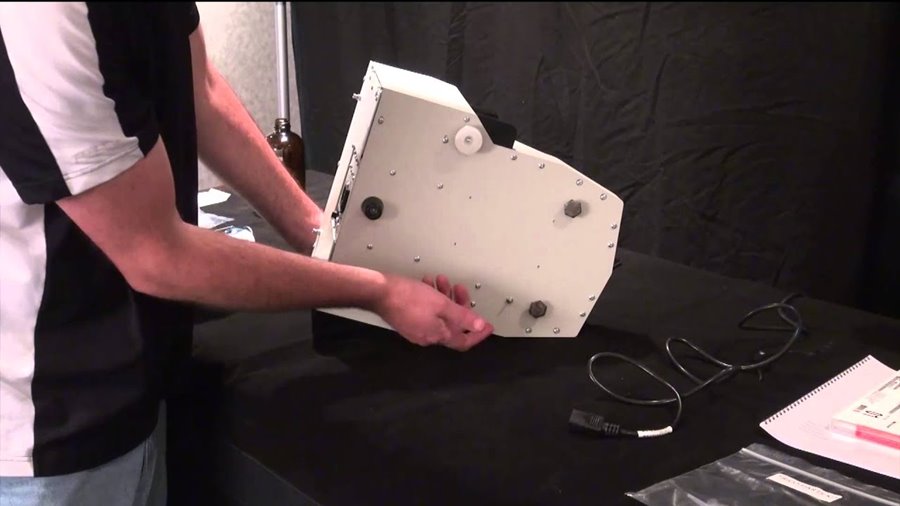

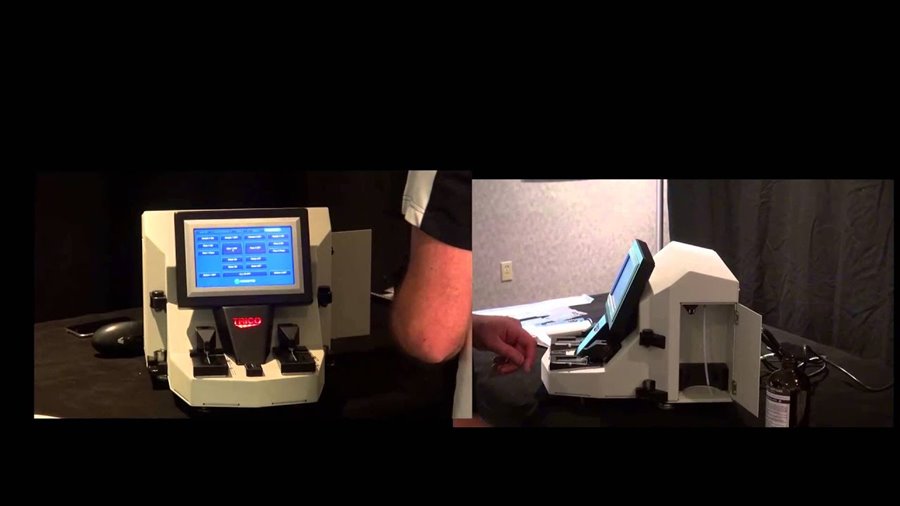

Trico Fm-6 Ferrogram Maker Operation

Trico Ferrograph Maker FM-6 Inventory and Needed Supplies
