Streamliner M Grease Dispenser

Streamliner M Grease Dispensers are designed to ensure reliable and precise lubrication while reducing lubrication costs with its advanced electro-mechanical drive. The unit consists of a vertical feed pump, motor and gear set, and microprocessor control system, allowing operating pressures up to 280 psi, which makes it ideal for use in remote and multi-point applications.

Contact Us to Purchase


Multi-Point Capability

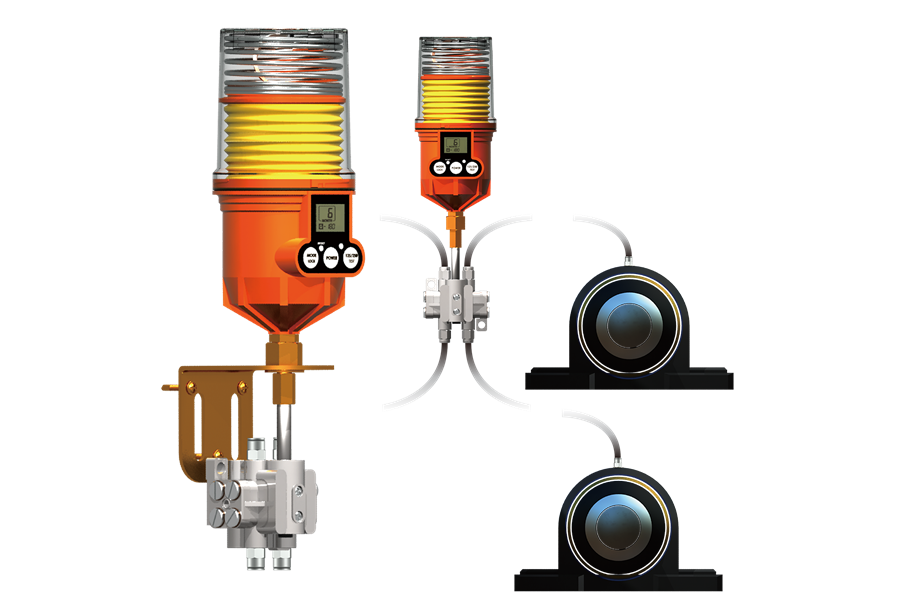

The dispenser has a high operating pressure of 280 psi making it ideal for use in remote and multi-point applications. When used with a Distribution Block a single unit can lubricate up to eight lubrication points.

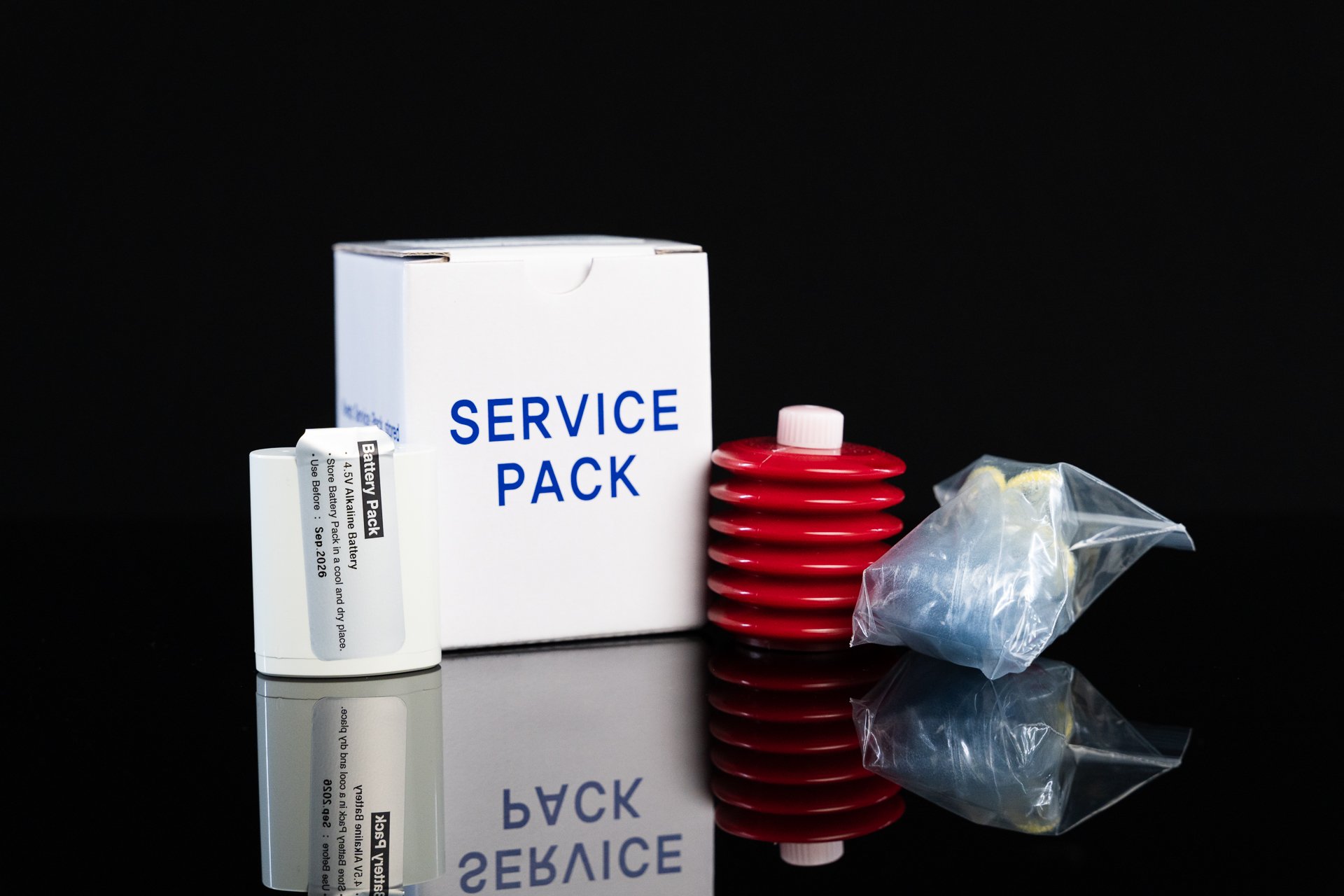

One of the most significant benefits of the Streamliner M Grease Dispenser is the savings over the cost of manual lubrication while providing reliable lubrication. The units are refillable through the use of a replaceable grease pouch. The grease pouch is available in 125cc and 250cc and are prefilled with one of six standard greases. Grease pouches are sold as a Service pack which includes a battery pack and dust cover as well.

Special Feature

Intuitive LCD Display

Large built-in LCD makes it easy to read and provides all the necessary information to optimally monitor the condition of the unit and the lubrication point.


Durable Construction

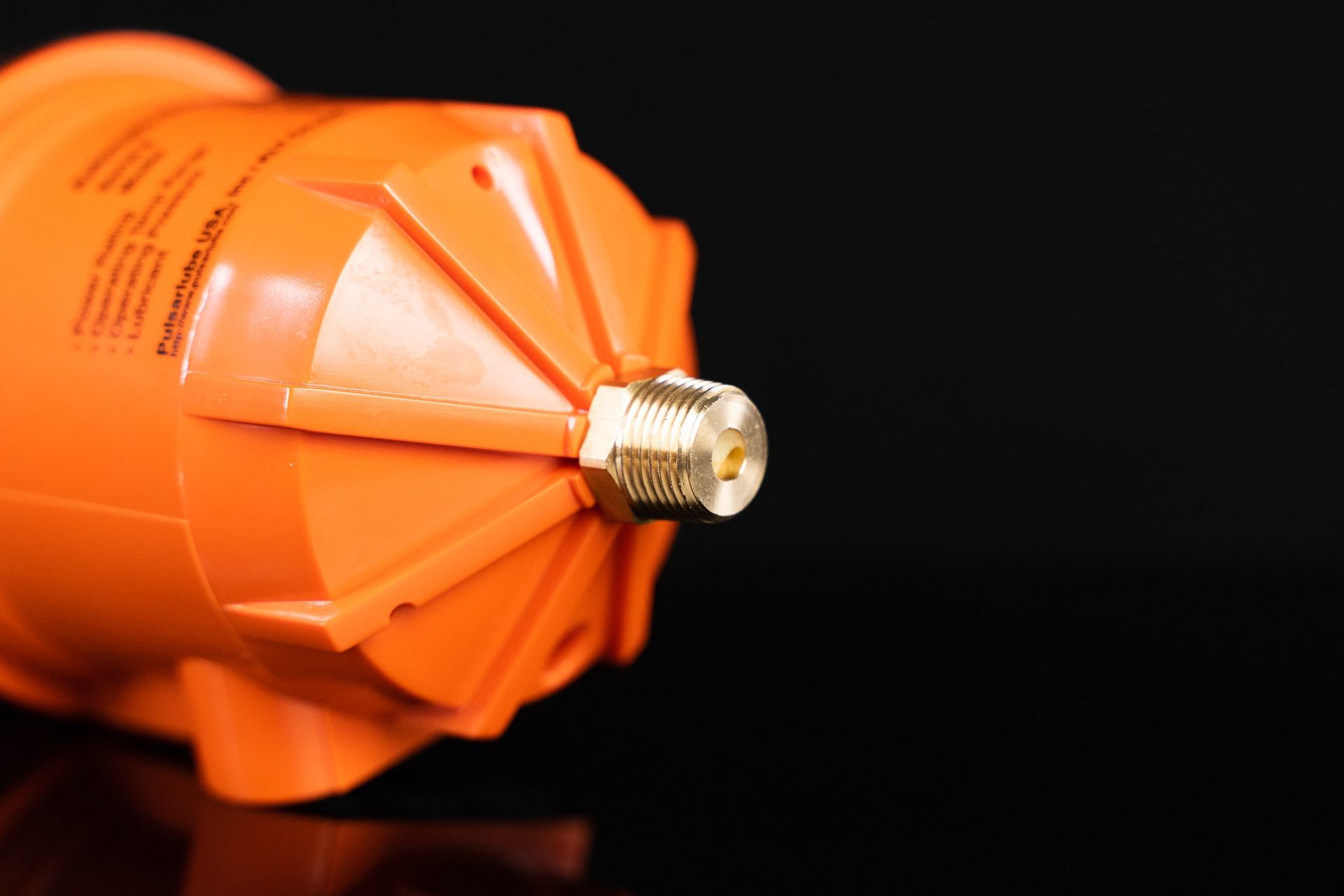

The thread is tempered steel with a brass finish allowing the unit to excel in high vibration applications.

Additional Features


Electro-mechanical driven with microprocessor control for precise lubrication delivery.

Variables Dispensing Rates

Select one of six variable dispensing rates from 1, 2, 3, 6, 12, and half month.

Other Specs

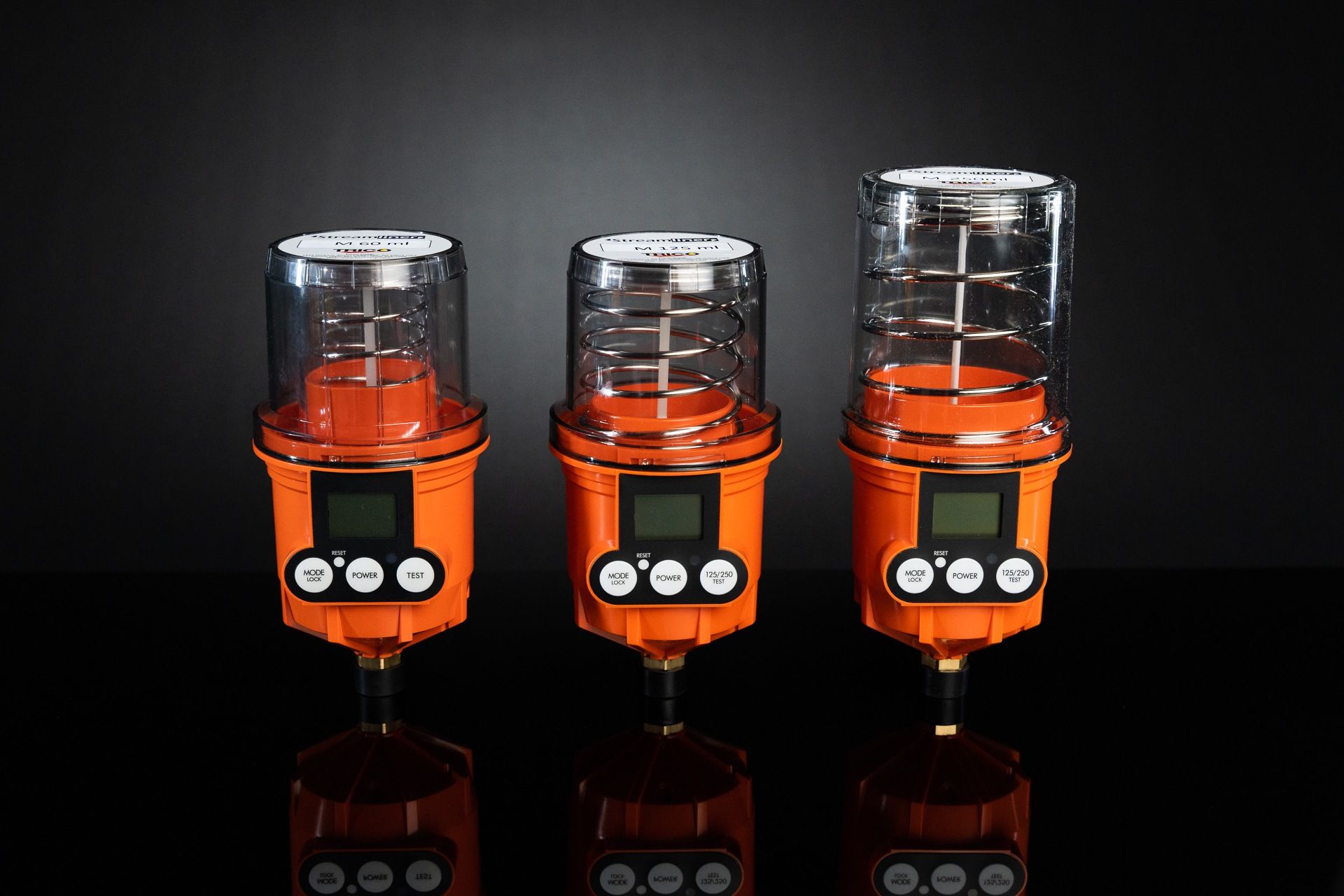

Model Description Dispenser Type Reservoir Capacity Thread Connection Normal Operating Pressure
33347 Streamliner M Standard 125 cc 3/8" NPT 280 psi
33348 Streamliner M Standard 250 cc 3/8" NPT 280 psi
33385 Streamliner M Standard 60 cc 3/8" NPT 280 psi
