PE-10 & PE-12 Series

The PE-10 & PE-12 Series automatic cyclic pumps are used in heavy-duty applications requiring a timed delivery of lubricant. These durable pumps provide long life and trouble-free service. With variable lubricant outputs and a choice of cycle times, they offer excellent versatility in many applications. Common applications include punch presses, milling machines, and other machine tools.

Contact Us to Purchase

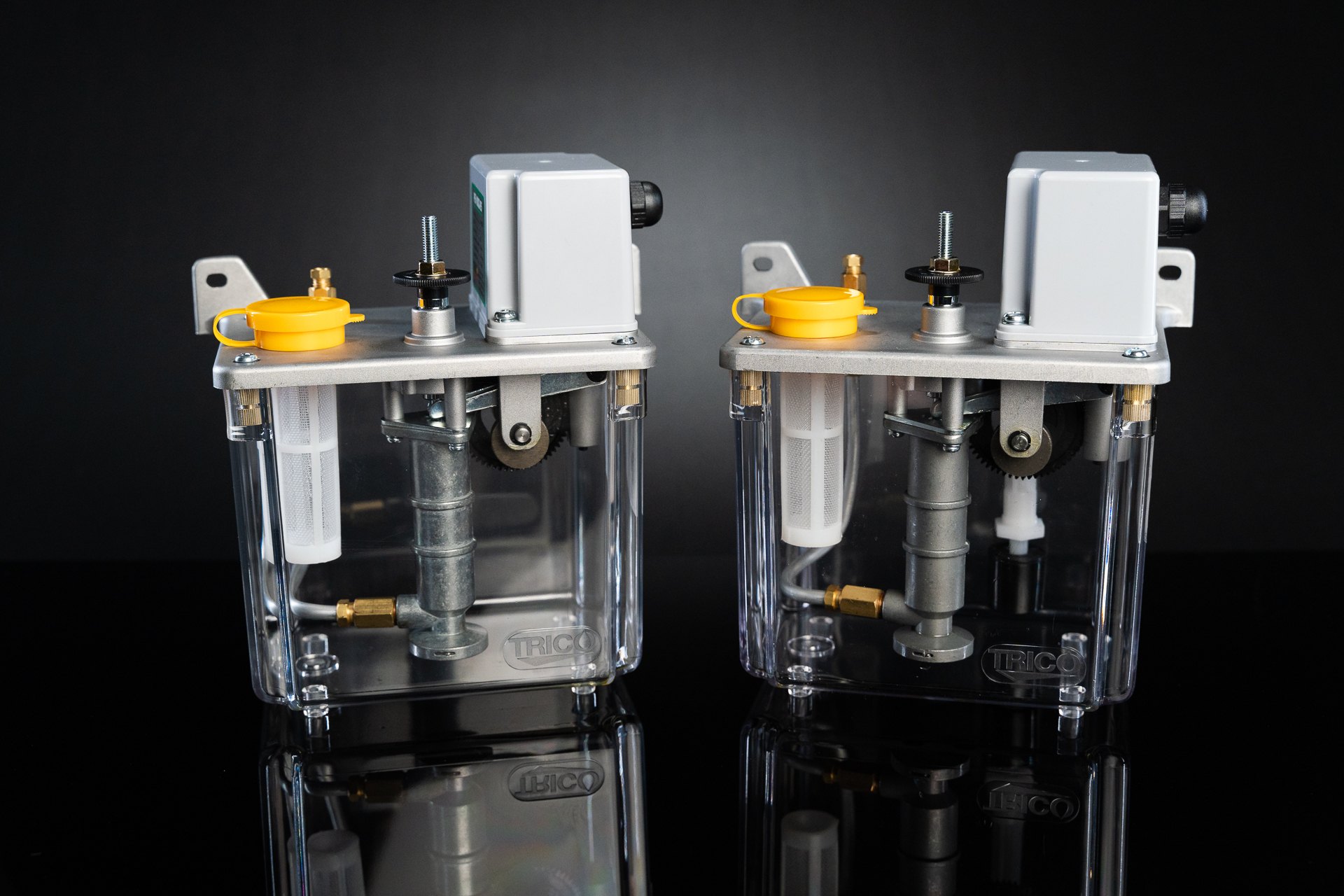

PE 10-12 series pumps side-by-side

Feature

Lubricant Delivery Setting

An adjustment screw with a calibrated rod simplifies setting the lubricant delivery output. Adjustable output range of 3 to 6 cc/cycle, or 3 to 120 cc/hour.

PE - 10 series pump adjustment angled close up

Feature

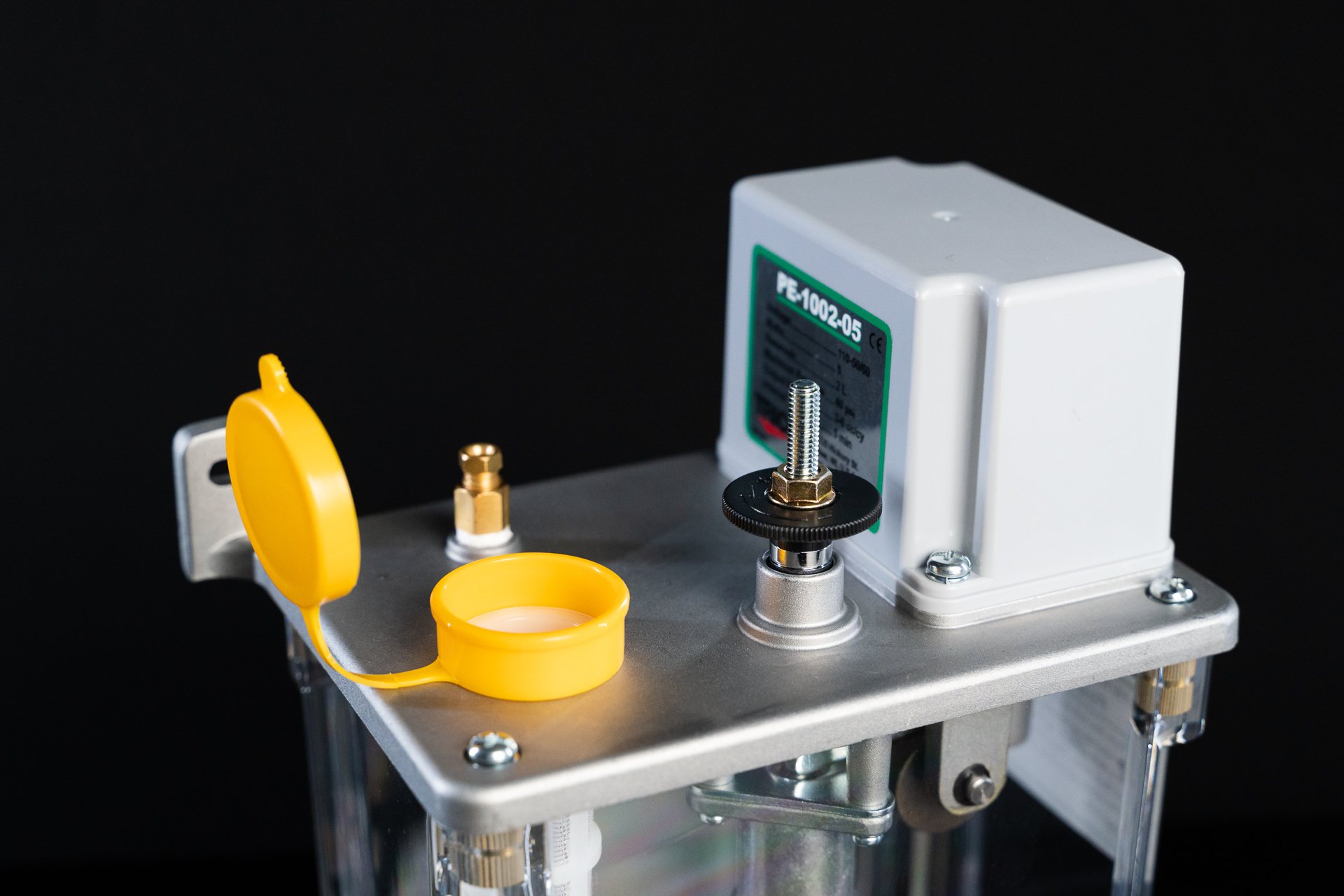

Easy Filling

A large fill plug simplifies adding or changing lubricant.

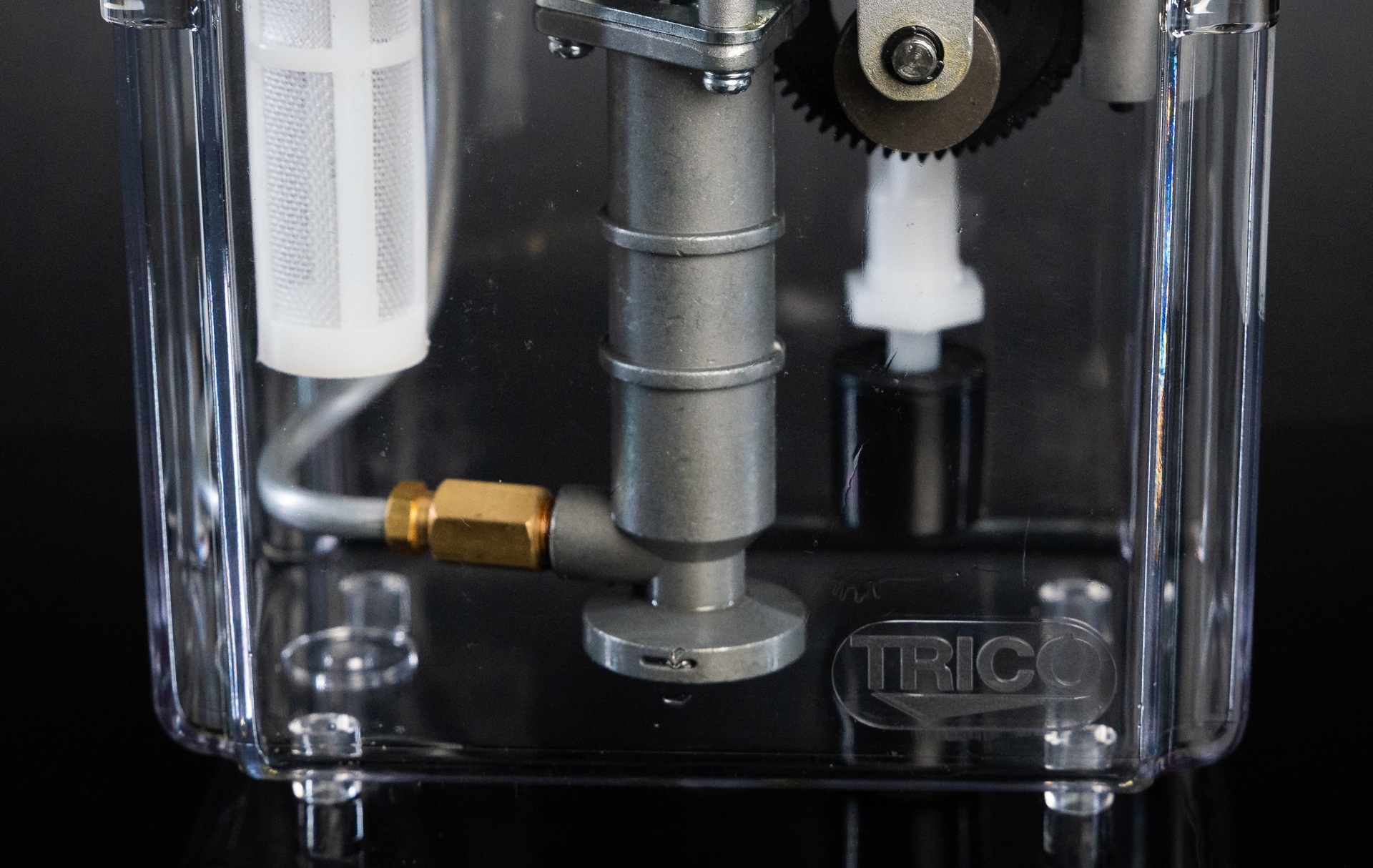

PE 12 float

Feature

Low Level Switch

The PE-12 Series has a low level switch to signal when lubricant level is low.

Additional Features

Oil Level Indication

Transparent 2-liter reservoir simplifies viewing oil level

Oil Filter

Convenient drop-in filter in fill port keeps oil clean

Accessories

This pump is commonly used with meter units in single or multiple point applications. Meter units, fittings, and accessories are available.

Other Specs

Model Description Interval Time Low Level Switch Output (cc/cycle) Min Output (cc/hour) Max Output (cc/hour)
PE-1002-03 Automatic Pump 3 No 3-6 60 120
PE-1002-05 Automatic Pump 5 No 3-6 36 72
PE-1002-10 Automatic Pump 10 No 3-6 18 36
PE-1002-15 Automatic Pump 15 No 3-6 12 24
PE-1002-30 Automatic Pump 30 No 3-6 6 12
PE-1002-60 Automatic Pump 60 No 3-6 3 6
PE-1202-03 Automatic Pump 3 Yes 3-6 60 120
PE-1202-05 Automatic Pump 5 Yes 3-6 36 72
PE-1202-10 Automatic Pump 10 Yes 3-6 18 36
PE-1202-15 Automatic Pump 15 Yes 3-6 12 24
PE-1202-30 Automatic Pump 30 Yes 3-6 6 12
PE-1202-60 Automatic Pump 60 Yes 3-6 3 6
