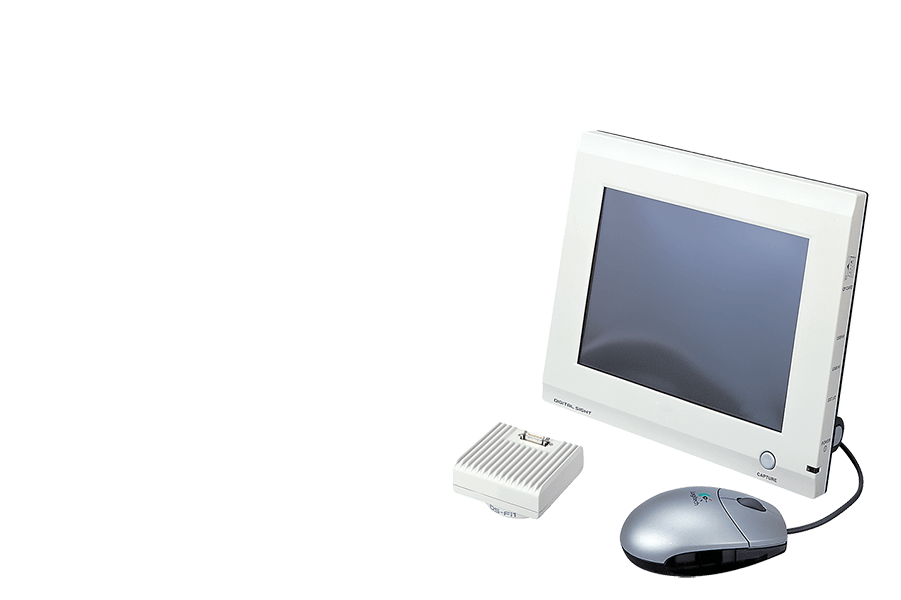

Ferroscope Digital Camera

The high-definition digital camera for the Ferroscope FS-6 features a 5-megapixel CCD that can capture wear particles. The camera improves red sensitivity by using a new IR-cut filter and enhances image quality, including increased brightness through 4x binning.

Contact Us to Purchase

Additional Features

LCD Monitor
The large, built-in LCD monitor can be split in half to display still and live images side-by-side to compare and contrast a sample image that serves as a reference with a live image—all without a computer connection.
Gamma Correction
The camera has exceptional color representation with seven default gamma correction presets and another seven that can be registered by the user.
Data Storage
Data can be saved to a USB memory stick, Compact Flash card, Mass storage class, Network
Advanced Tools
A wide variety of tools are unique to the camera: crosshairs, measurement, and scale display.
Image Capture
Scene mode enabling optimal image capture with a single click.
Printing Capable
Supports direct printing: just connect the unit’s USB port to a printer which supports the PictBridge standard.

Other Specs

  • CCD
    2/3 in. high density CCD (total number of pixels 5.24 mil)
  • Recordable Pixels
    2560 x 1920 px, 1280 x 960 px, 640x 480 px
  • Dimensions
    3″W x 3″D x 1.75″H
  • Weight
    .5 lbs
  • Digital Zoom
    Up to 16x
  • Interface
    USB device port x 1 (mass storage class support), USB host port x 2 (USB mouse, USB memory stick, USB keyboard, microscope connection)
  • Power Supply
    AC100-240V 50/60Hz
  • Power Consumption
    70VA
  • Dimensions
    9″W x 2.5″D x 7.875″H
  • Weight
    3 lbs.
  • LCD Monitor
    8.4 TFT Color LCD XGA (124 x 768) SXGA/XGA
  • Storage Media
    Compact flash card (type I, type II), USB memory stick, microdrive
  • Direct Printing
    PictBridge printer (sold separately)
