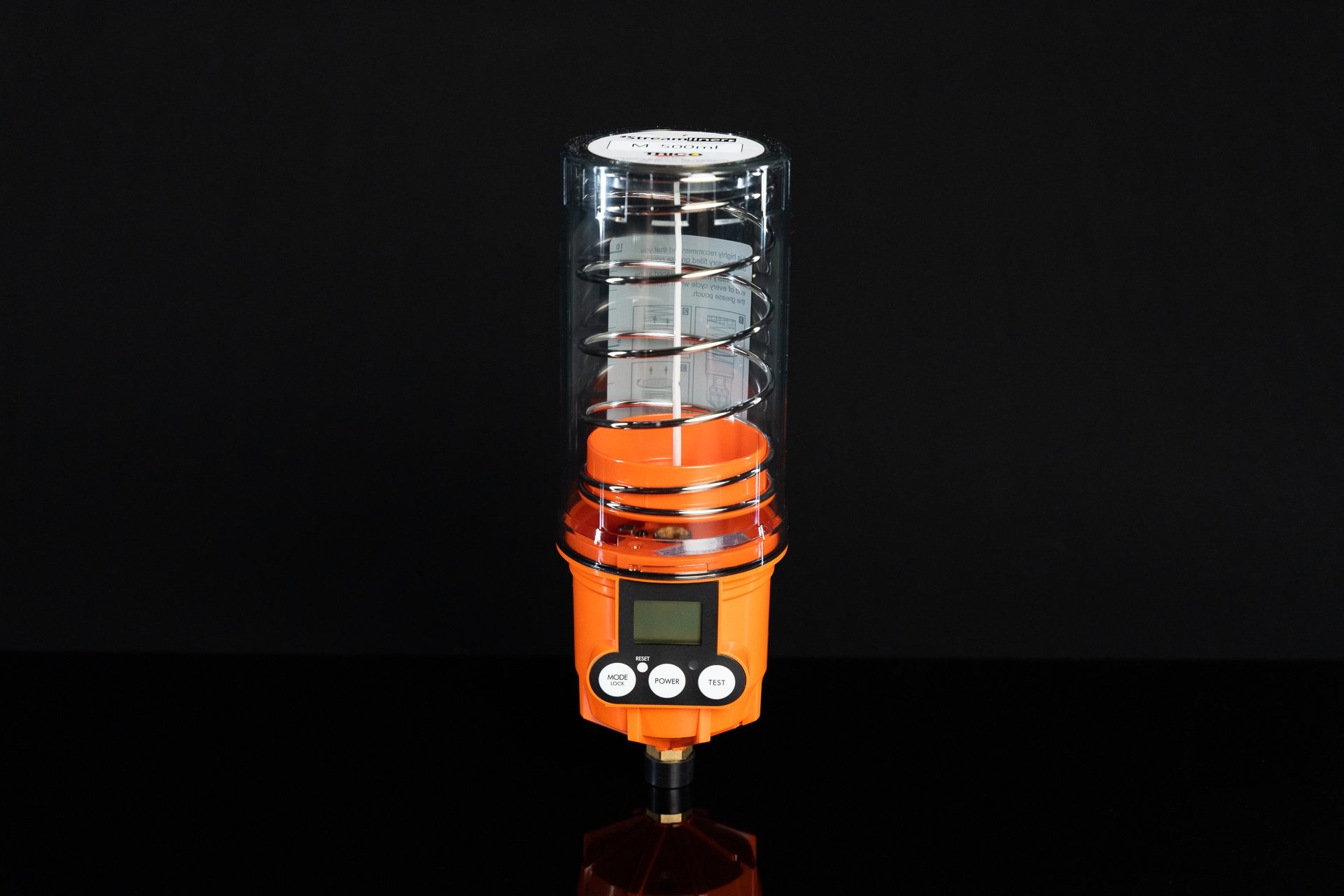

Streamliner M 500cc Grease Dispenser
The Streamliner M family now offers a larger reservoir capacity of 500cc to meet the demand for multi-point lubrication and the lubrication of large size bearings. The larger reservoir volume minimizes labor cost associated with the more frequent grease cartridge replacement that occurs with the 125cc and 250cc units.
Feature
Multi-Point Capability
The Streamliner M 500cc consists of a vertical feed pump, motor/gear set, and microprocessor control system, which delivers an operating pressure of 280 psi. The lithium battery pack allows you to achieve higher pressures, which makes the unit ideal for multi-point lubrication. When used with Distribution Block, a single unit can lubricate up to eight lubrication points.
Feature
Refillable
One of the most significant benefits of the Streamliner M 500cc Grease Dispenser is the savings over the cost of manual lubrication while providing reliable lubrication. The units are refillable through the use of a replaceable grease pouch. The grease pouch is prefilled with one of six standard greases with either a standard alkaline or high-performance lithium battery pack, depending on the requirements of the application. Grease pouches are sold as a service pack, which includes a battery pack and dust cover as well.
Special Features
Intuitive Display
LCD Display
Dispensing Period
Displays selected dispensing rate from a choice of six – 1, 2, 3, 6, 12, and half month.
Days Until Empty
Displays the number of days remaining until grease pouch is empty.
Grease Capacity
Indicates the selected grease pouch capacity installed in the unit.
Test Mode
Notification that the unit is in test mode which runs a cycle to check for proper operation of the unit.
Empty Notification
Notification the unit is empty and the number of days since the grease pouch has been empty.
On Hold Notification
Provides notification of operation on hold due to excessive backpressure and the number of days operation has been on hold.
Battery Notification
Low battery power icon indicator.
Alert Status
A red LED blinks when battery level is low, excessive backpressure exists, or grease level is empty.
Feature
Durable Construction
The thread is tempered steel with a brass finish that allows the unit to excel in high vibration applications.
Additional Features
- Accuracy
Electro-mechanical driven with microprocessor control for precise lubrication delivery
- Variable Dispensing Rates
Select one of six variable dispensing rates from 1, 2, 3, 6, 12, and half month.
Other Specs
| Model | Description | Reservoir Capacity |
|---|---|---|
| 33410 | Streamliner M 500cc Grease Dispenser |
500cc |
-
Grease Capacity500cc (16 ounces)
-
Power SupplyDC 4.5 Volt (Replaceable)
Standard Alkaline Battery
Lithium Battery -
Normal Operating Pressure280 psi
-
Maximum Operating Pressure800 psi
-
Unit Operating TemperatureStandard Battery: 5ºF – 140ºF
Lithium Battery: -40ºF – 140ºF -
Dispensing RatesHalf, 1, 2, 4, 6, 12, 18, 24 months
-
Six Standard GreasesMobilgrease XHP 222
Exxon Unirex EP2
Mobil SHC 100
Mobilgrease FM 222
Mobilith SHC 220
Mobilith SHC PM 460 -
Lube CycleApproximately 20 seconds/stroke
-
Thread Size3/8 NPT
