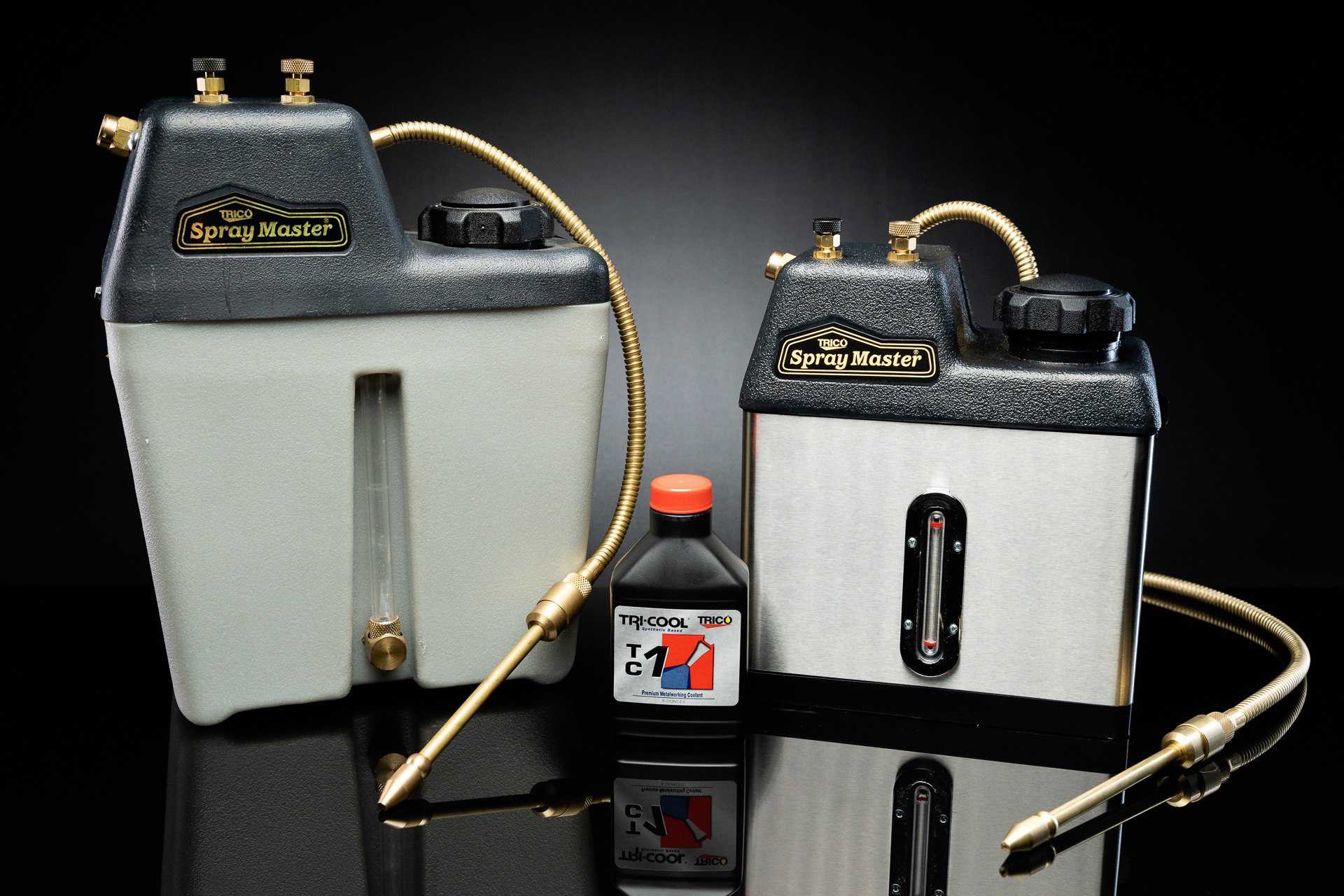

SprayMaster Coolant System

SprayMaster Coolant Systems offer spray cooling that features two-line capability and optional stainless-steel tank. The additional upgrade to a one-gallon reservoir makes the SprayMaster the "go to" choice for tool room and other light-to-medium duty machining applications. Typical applications include drilling, milling, turning, grinding, and tapping.

Contact Us to Purchase

Feature

Nozzle Assembly

One or two 6-inch straight brass nozzle(s), standard with five-foot delivery line(s), allows for remote tank mounting. The armored brass protects the internal plastic delivery lines from melting from hot metal chips.

Feature

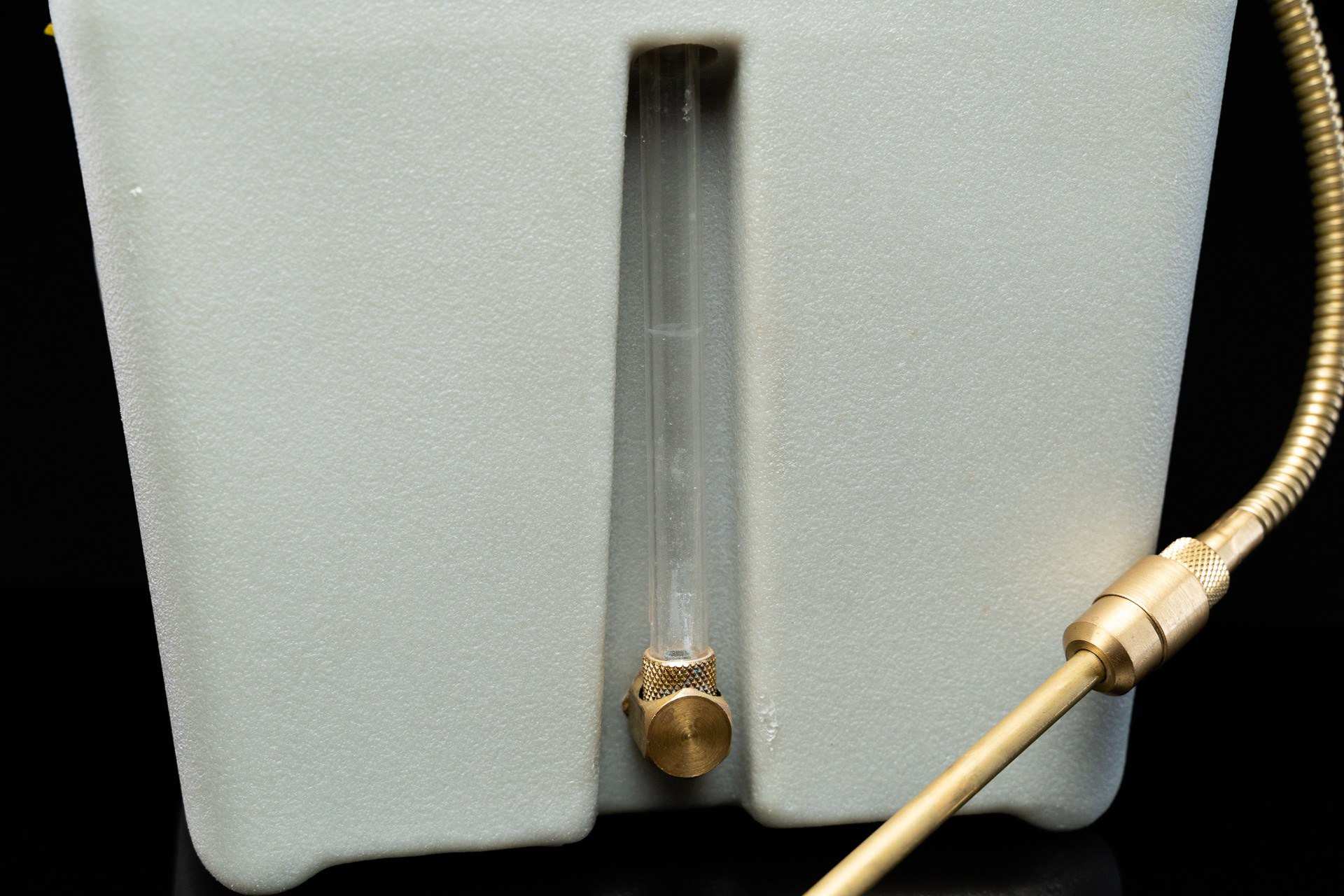

Coolant Sight Gauge

An 8-inch acrylic sight gauge provides a clear view of how much coolant remains in the convenient 1-gallon reservoir.

Feature

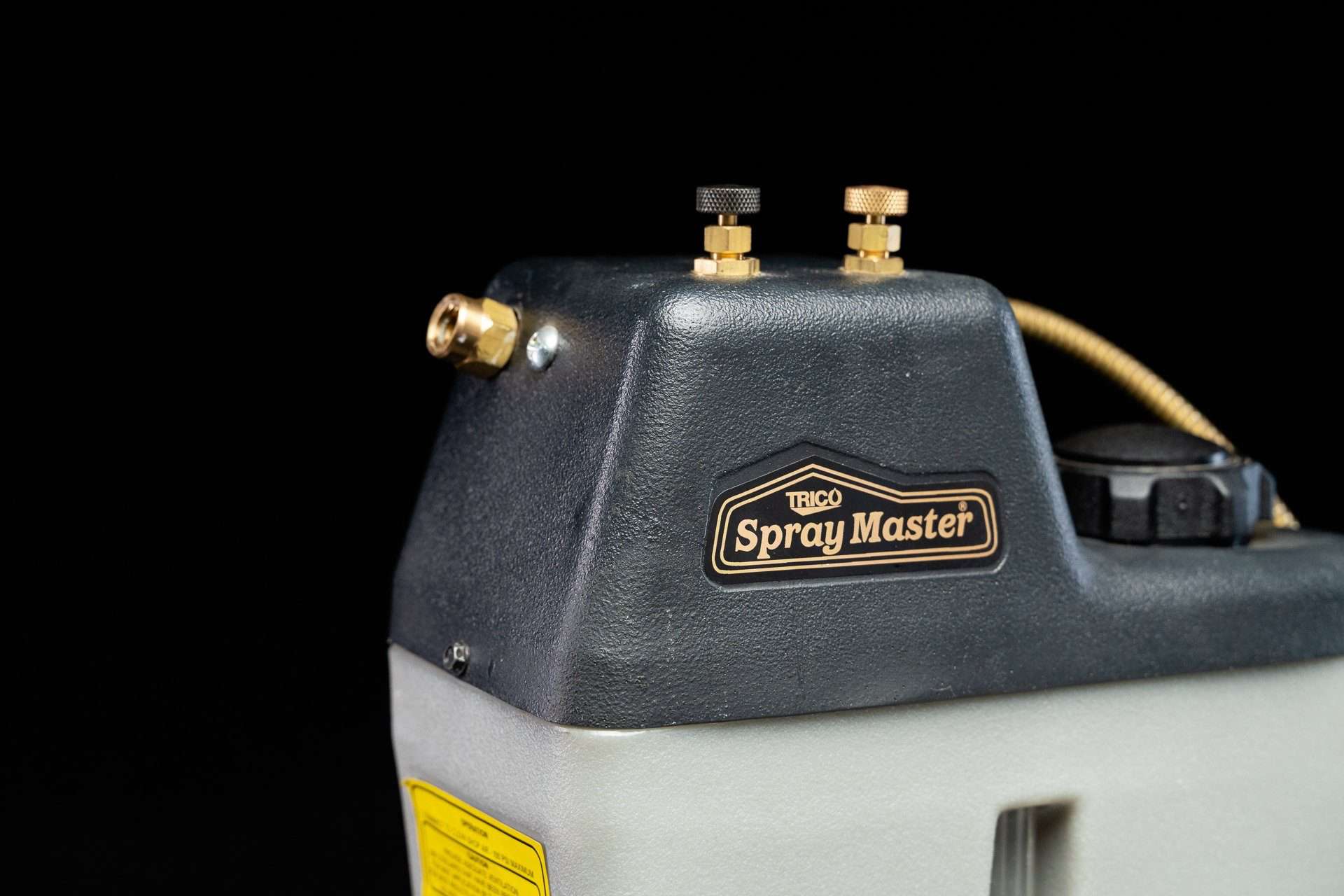

Independent Controls

Separate air (black) and liquid (gold) needle valves allows for independent air and liquid flow. Use less coolant with high air flow for increased chip clearing power while reducing overspray. Some air is still required as it is what creates the siphon effect for the liquid flow.

Additional Features

Low Profile Mounting Bracket

Mounting bracket affixed to the back of the tank accepts (2) 5/16" diameter screws at a distance of 8 inches. (HDPE and SS tank)

Large Reservoir

One gallon reservoir capacity and a practical size of 12-1/4"(H) x 10" (W) x 5-1/4" (D)

Optional Stainless Steel Tank

Stainless steel tank offers superior protection from corrosion and heat in a 1-gallon capacity. Dimensions: 9-3/8" (H) x 8-3/8" (W) x 5-1/4" (D)

Other Specs

Model Description No. of Lines Reservoir Capacity Line Length
30542 Spraymaster 1 Polyethylene 1 gal. 5 ft.
30543 Spraymaster 2 Polyethylene 1 gal. 5 ft.
30548 Spraymaster 1 Stainless Steel 1 gal. 5 ft.
30549 Spraymaster 2 Stainless Steel 1 gal. 5 ft.

De"mist"ifying Metal Cutting Fluid Dispensing Systems

Watch on YouTube

Related Products

TC-1 Premium Synthetic Coolant

Learn More From Lubricology

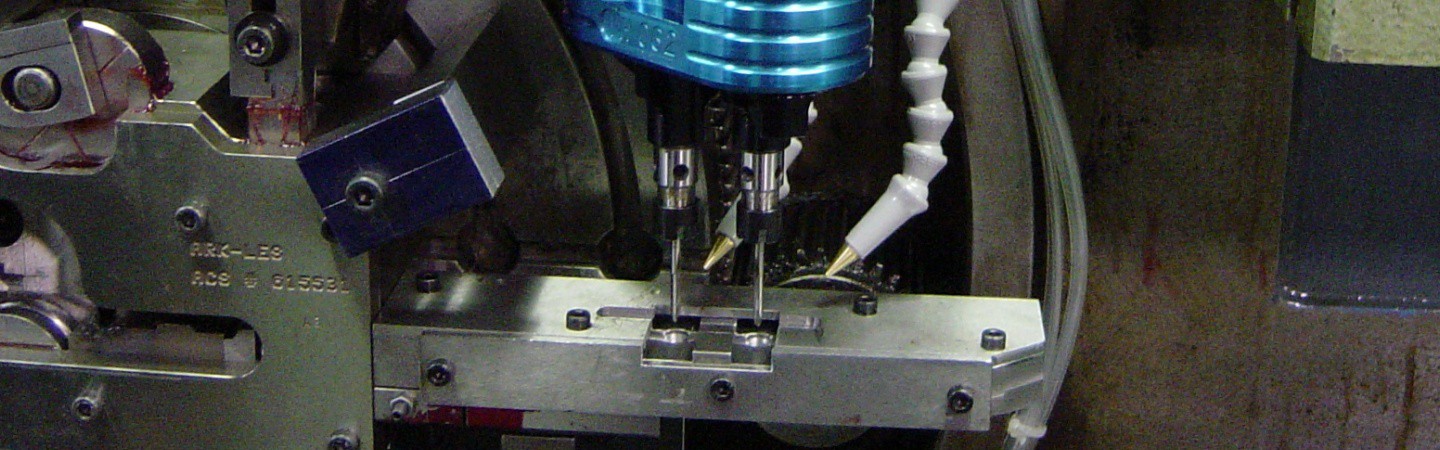

Metal Cutting Advancement

  • Metal Cutting
08.17.2021 Dan Freeland

Metal Cutting Advancement

The basic principle of micro-dispensing is the utilization of a precision dispenser to apply small amounts of lubricant needed (less than 1 percent of the air-fluid mixture) to effectively perform the metal cutting operation. As a result, the lubricant is essentially consumed during machining. No residue is left on the machine or workpiece, nor is there any airborne mist.

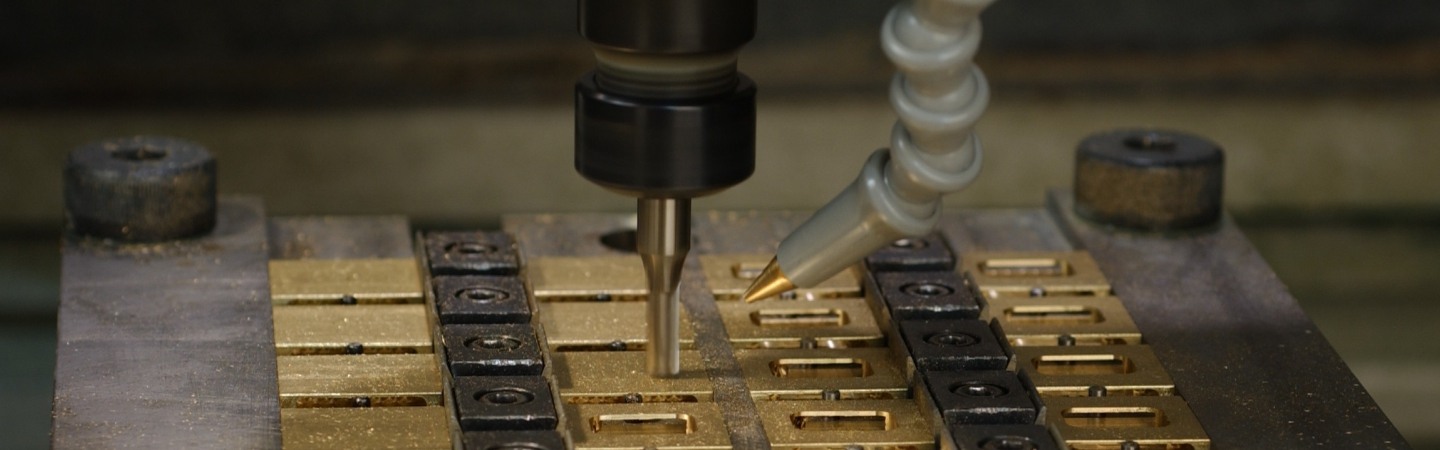

De”mist”ifying Metal Cutting Fluid Dispensing Systems

  • Coolant
  • Lubricant
  • Metal Cutting
07.20.2021 Dan Freeland

De”mist”ifying Metal Cutting Fluid Dispensing Systems

Imagine tripling parts production while extending tool life and significantly reducing the amount of cutting fluids, coolants, or lubricants used during the cutting operation.

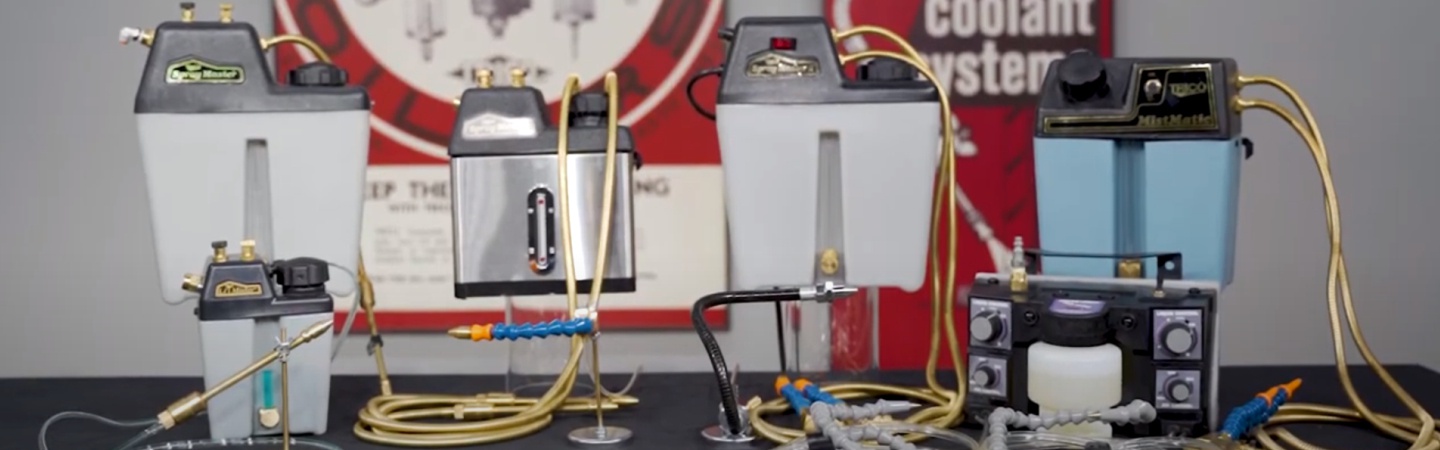

It’s Easy to Beat Tool Heat
