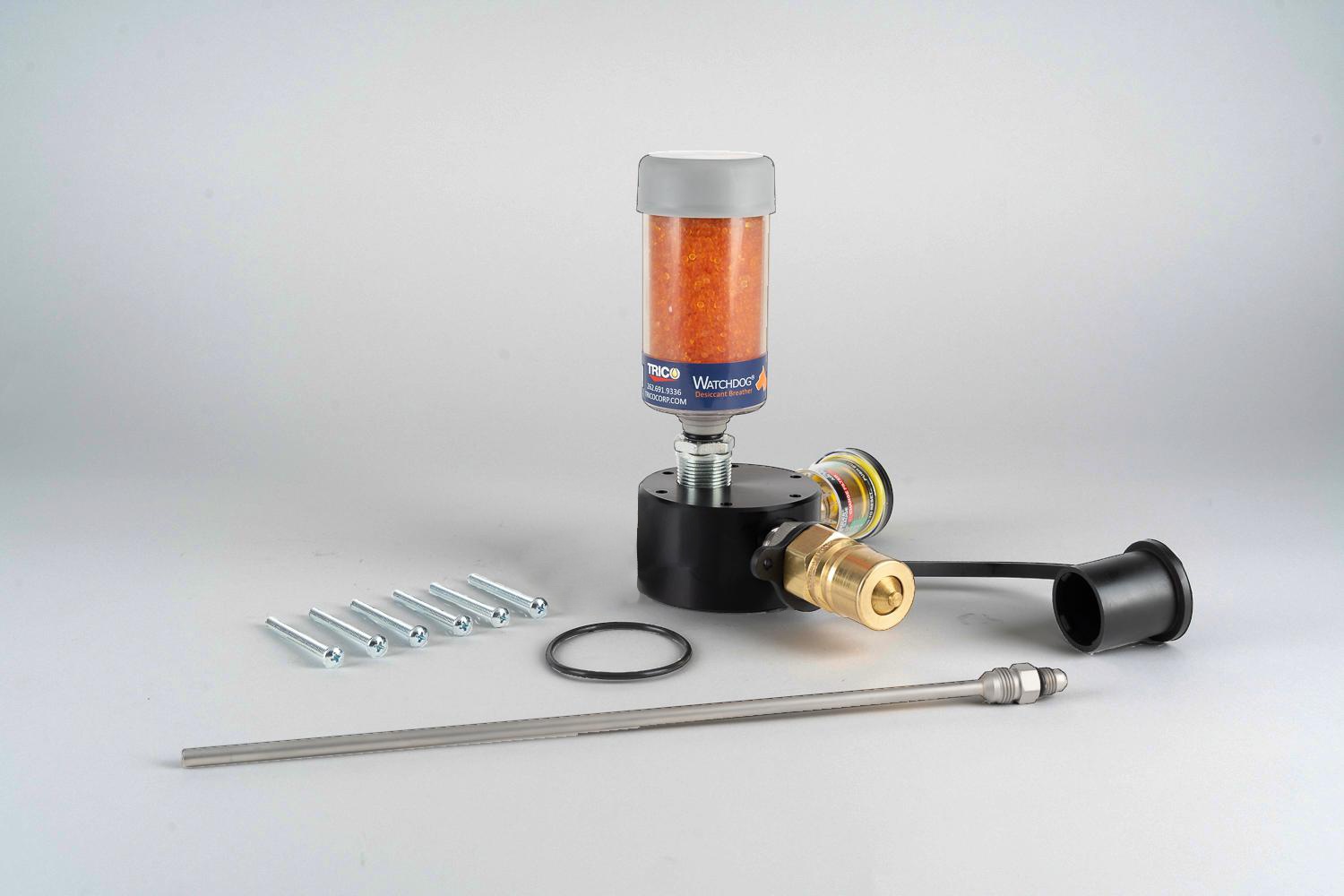

Because airborne contaminants can quickly disrupt and negate your sample, Trico offers specially designed Reservoir Breather Kits. These kits feature a two-stage breather system that utilizes a filter to block airborne particles and desiccant to remove, harmful, unwanted moisture. The system ensures a permanent closure on all hydraulic reservoirs and makes sure the lubricating fluid remains closed off from airborne contamination throughout the sampling process.

An optional filter reminder vacuum gauge can be used to indicate when the filter element on the breather has become clogged and needs replacing.

A male quick connect can be plumbed to the 6-bolt adapter plate (this plate replaces the standard filler/breather cap) to fit a down pipe for filling reservoirs with new oil through a filter cart without opening the system to the environment.

For static sampling of the oil from the system reservoir, the 6-bolt adapter plate incorporates a sample port connected to a sample tube. The tube conveniently extends to the middle of the fluid level in the system reservoir to allow samples to be taken from the exact location inside the system every time.

2″ NPT Male Adapter with 6 Bolt ANSI Threads is available (mofel no – 16207).

Clear

This product is only available through distribution partners, find them here.

SKU: Please select options above for SKU
Categories: , .
Share
Model No.DescriptionQuick ConnectTube LengthFilter ReminderWater Capacity (lbs)Air Flow
36905Hydraulic Reservoir KitN/A12"No.920 CFM
36906Hydraulic Reservoir Kit1/2" Male12"No.920 CFM
36907Hydraulic Reservoir Kit1/2" Female12"No.920 CFM
36909Hydraulic Reservoir Kit1/2" Male18"No.920 CFM
36910Hydraulic Reservoir Kit1/2" Female18"No.920 CFM
36911Hydraulic Reservoir KitN/A24"No.920 CFM
36912Hydraulic Reservoir Kit1/2" Male24"No.920 CFM
36917Hydraulic Reservoir KitN/A12"Yes.920 CFM
36918Hydraulic Reservoir Kit1/2" Male12"Yes.920 CFM
36919Hydraulic Reservoir Kit1/2" Female12"Yes.920 CFM
36921Hydraulic Reservoir Kit1/2" Male18"Yes.920 CFM

Reservoir Breather Kit with Sample Port

  • Optional filter reminder indicates remaining life of filter element
  • Color coded desiccant changes colors indicating replacement is needed, when maximum adsorption is reached
  • Sample port is available with sampling drop tubes in 12″, 18″, and 24″ lengths
  • Sold separately – optional suction tube to fit 55-gallon drum that can be used to recirculate fluid (model no – 20-00545)
  • 2″ NPT Male Adapter with 6 Bolt ANSI Threads is available (mofel no – 16207)
