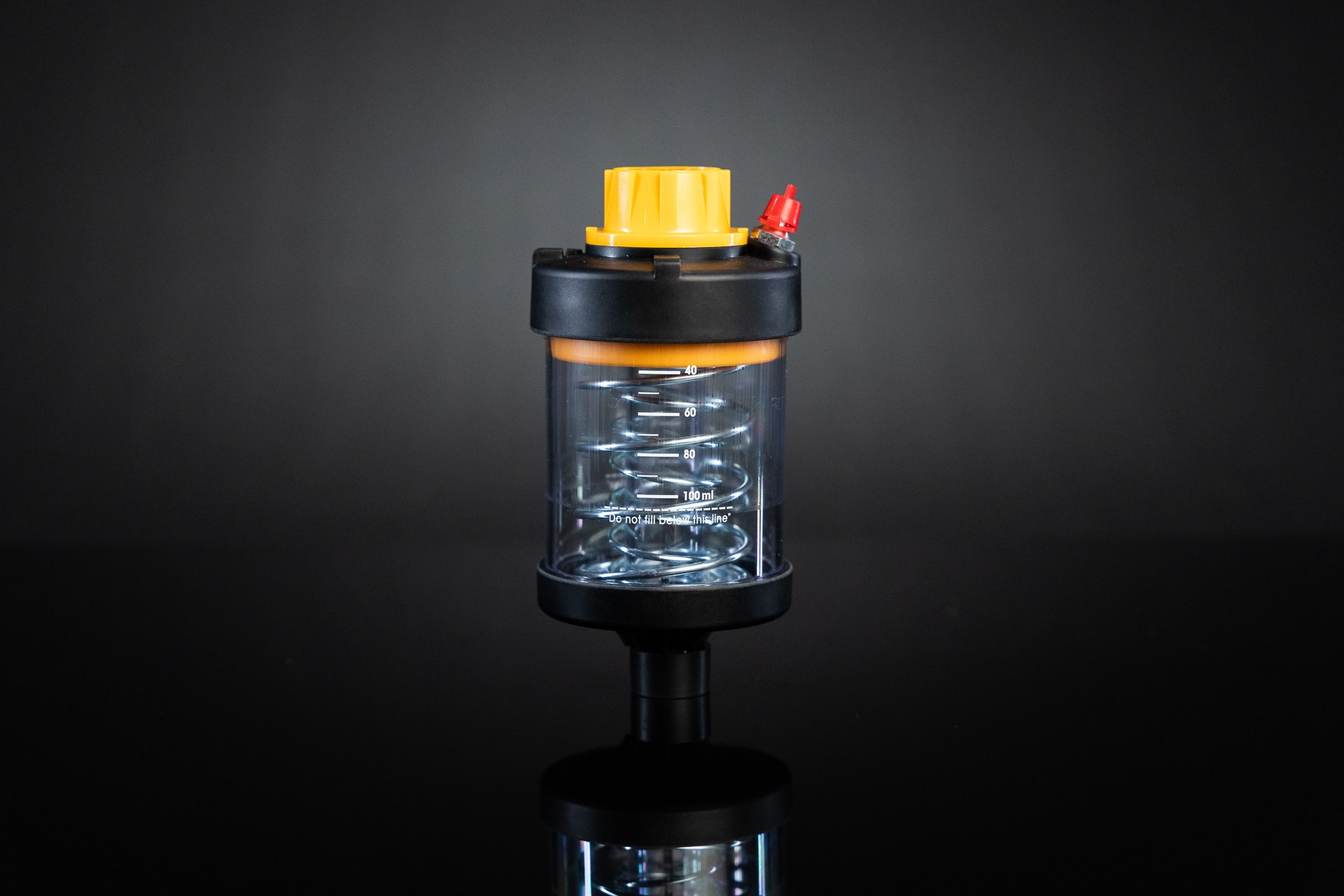

Streamliner S Grease Dispenser
The Streamliner S Grease Dispenser is a self-contained unit that offers worry-free operation. It contains five different control settings that deliver the proper amount of grease to the lubrication point.
Feature
Innovative Design
The unit has a double-spring design at the bottom of the grease dispenser, which pushes the grease upward in a grease intake orifice, then down a guide tube and into the lubrication point. This design provides a more uniform dispensing pressure, prevents hardening of the grease, and allows the grease dispenser to completely empty its contents.
Feature

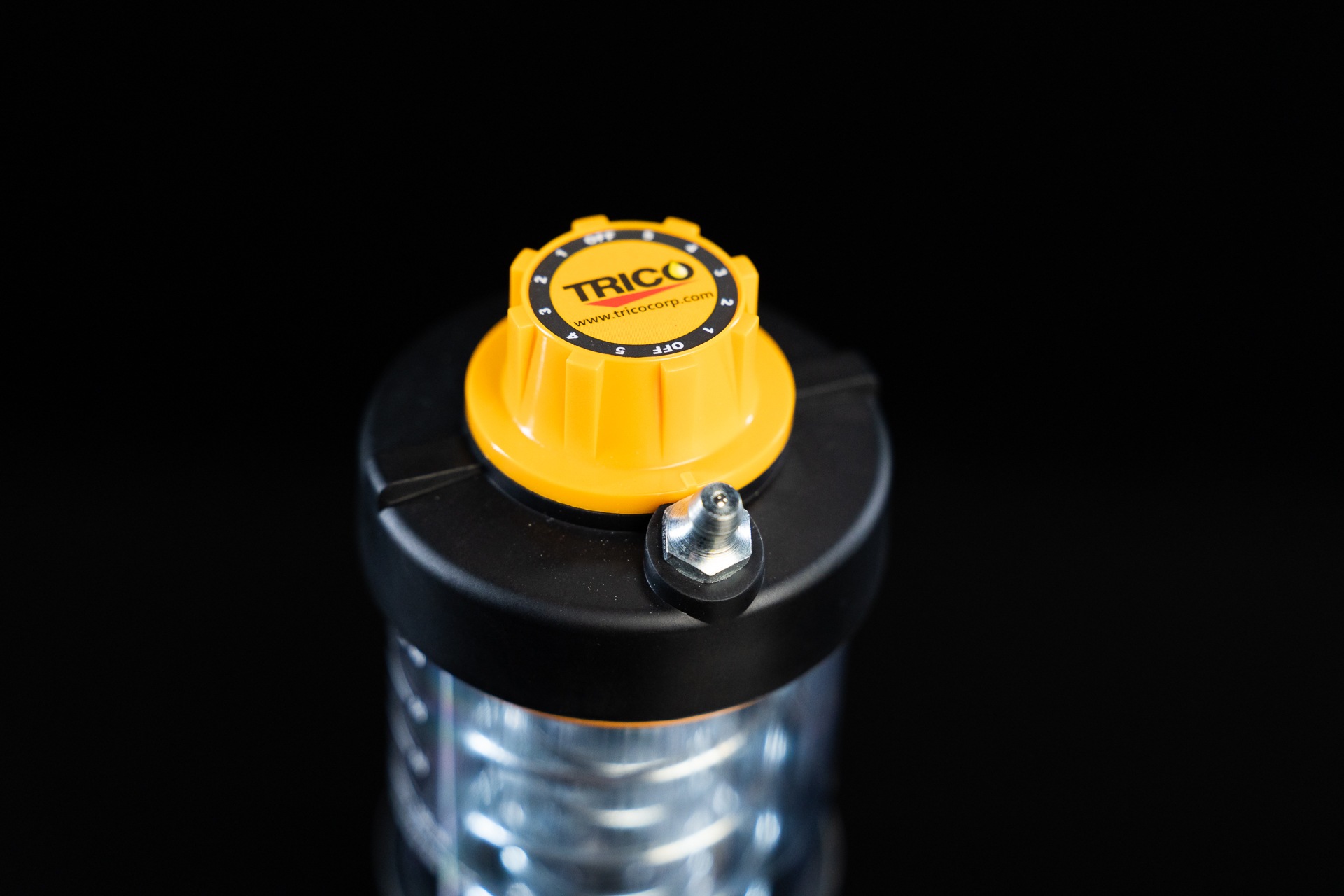

Control Knob
The grease-dispensing rate can be easily adjusted by using the control knob's five different settings.
Additional Features
- Refillable
Easy-to-refill grease dispenser with a zerk fitting
- Level Indication
A clear reservoir provides easy viewing of grease level.
Other Specs
| Model | Description | No. Control Settings |
|---|---|---|
| 33392 | Streamliner S Grease Dispenser | 5 |
-
Grease Capacity100cc (90 grams)
-
Operating Temperature-10ºF – 250ºF (-23ºC – 121ºC)
-
Thread Connection1/4″ NPT
-
Suitable GreasesNLGI 1 – NLGI 2
-
Spring Force15 psi
