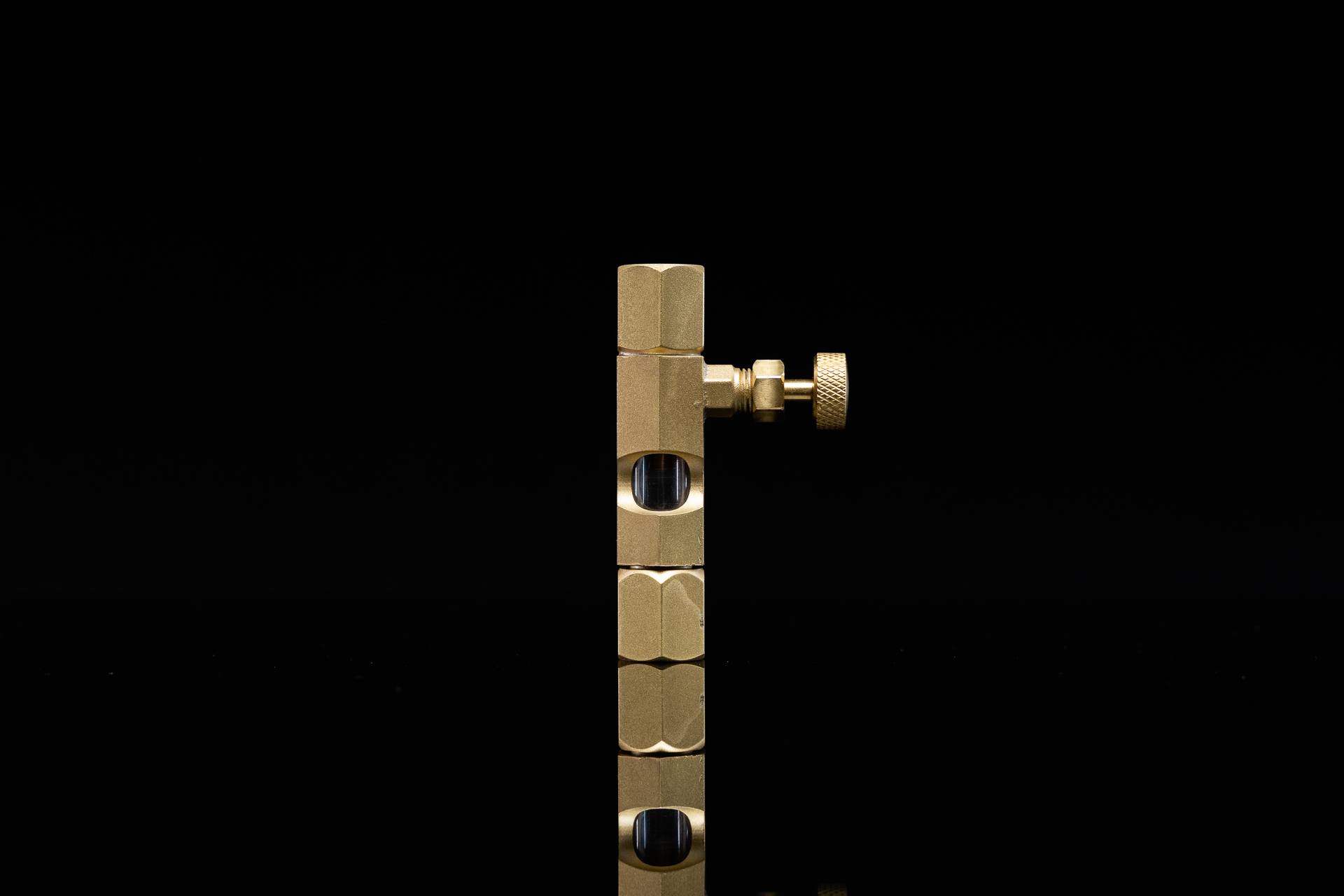

ST Valve Double Female
ST Valve Double Female is used with Type D Dispensers or Type DE Dispensers where feed rate adjustment is desired at the point of lubrication. When variable operating conditions require frequent adjustment, the large, knurled knob simplifies setting the desired feed rate.
Additional Features
- Reliable
Horizontal design of needle valve minimizes contamination at the valve seat
- Easy Installation
Double female threads simplify installation
- Drip Rate View
Heavy wall polycarbonate or heat-resistant glass sights allow easy setting of the desired drip rate
- Durable
Silver brazing of all-brass construction provides long life and leak proof design. Clear lacquer finish of brass components resists corrosion.
Other Specs
| Model | Description | Connection Out (NPT) | Connection In (NPT) | Sight | Sight Position |
|---|---|---|---|---|---|
| 32404 | ST Valve | 1/4 | 1/4 | Glass | Right Angle |
| 32408 | ST Valve | 1/4 | 1/4 | Acrylic | Right Angle |
-
Max. Operating Temp.220ºF Continuous
-
Oil SightHeavy Wall Heat Resistant Glass
High Impact Strength
Polycarbonate Plastic -
GasketBuna-N
-
Packing GlandSelf Lubricating Buna-N
-
MaterialsBrass
-
FinishLacquered Satin Finish
-
Needle ValveBrass
