Breather Vents

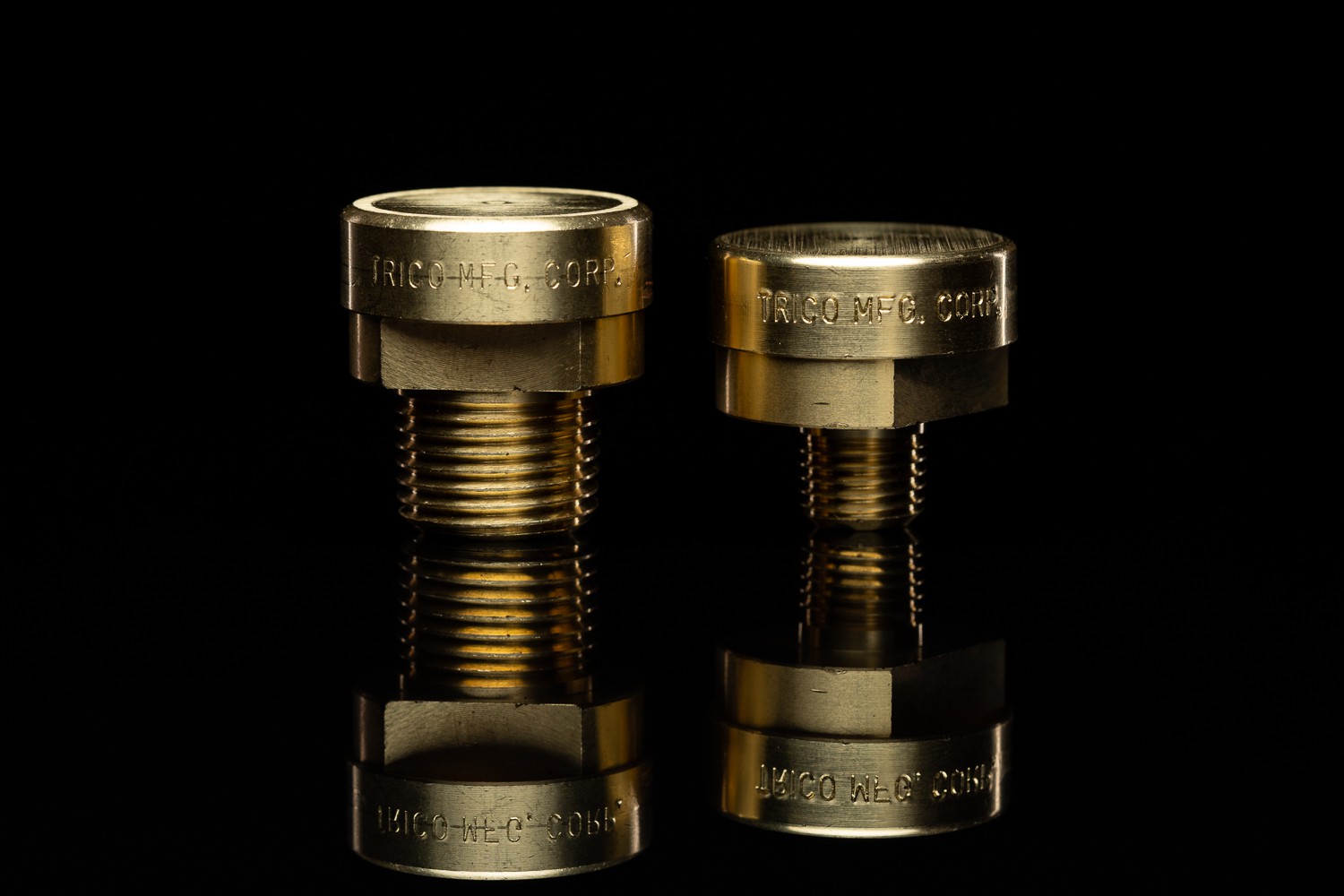

Trico Breather Vents are designed to support centrifugal pumps and other equipment that require air exchange. Available in three thread sizes, they offer versatility and compatibility with a wide range of machinery.
Feature
Filter Option

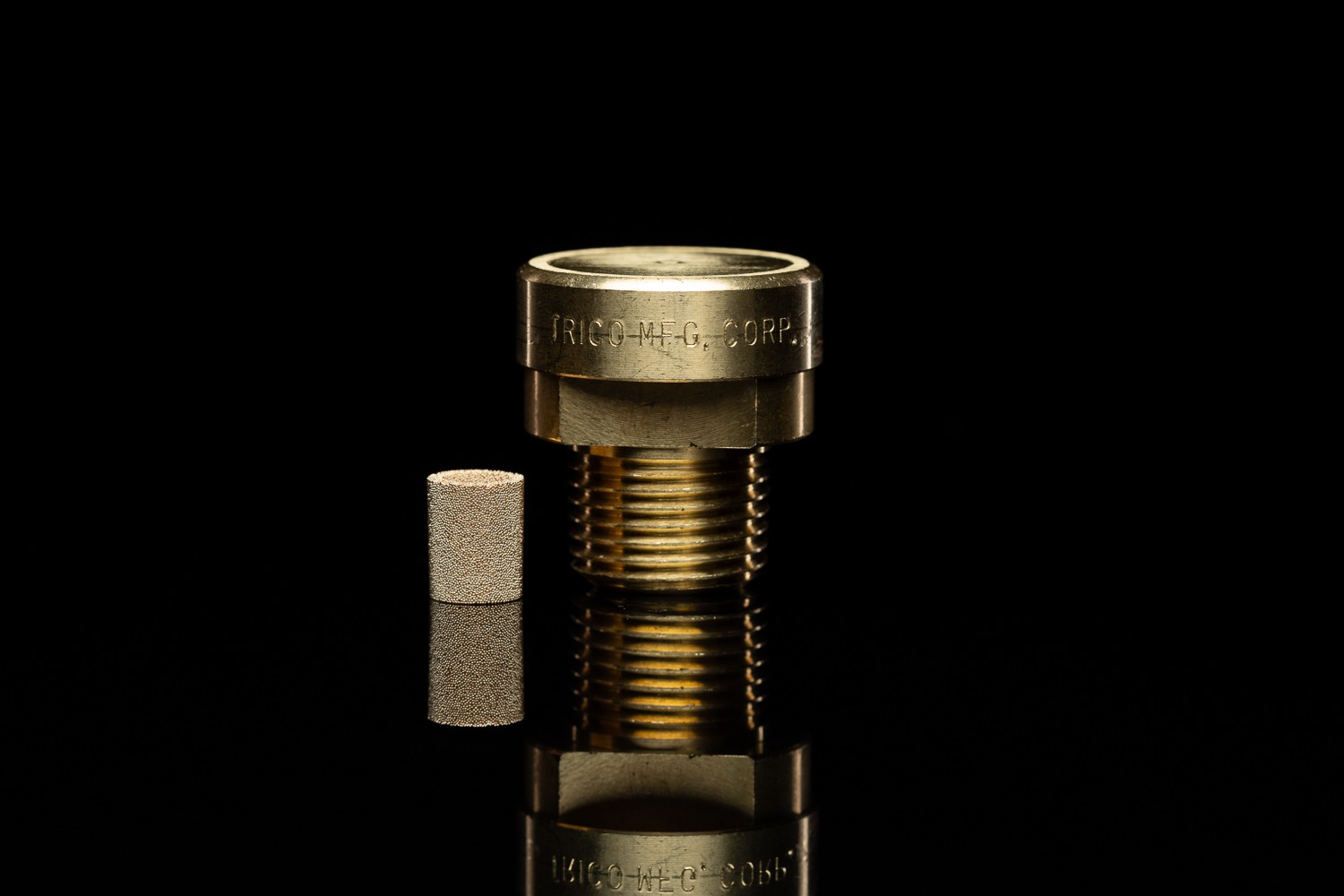

For applications where minimizing contamination is needed, Trico Breather Vents offer an optional 40-micron porous filters. This feature helps screen out harmful particles, protecting your equipment from potential damage.
Other Specs
| Model | Description | Fitting Connection | Dim A (in) | Includes Filter |
|---|---|---|---|---|
| 31050 | Breather Vent | 1/4" NPT | 1 | No |
| 31051 | Breather Vent | 3/8" NPT | 1 | No |
| 31052 | Breather Vent | 1/2" NPT | 1-1/8 | No |
| 31053 | Breather Vent | 1/4" NPT | 1 | Yes |
| 31054 | Breather Vent | 3/8" NPT | 1 | Yes |
| 31055 | Breather Vent | 1/2" NPT | 1-1/8 | Yes |
Description
Breather Vent
Fitting Connection
1/4" NPT
Dim A (in)
1
Includes Filter
No
Description
Breather Vent
Fitting Connection
3/8" NPT
Dim A (in)
1
Includes Filter
No
Description
Breather Vent
Fitting Connection
1/2" NPT
Dim A (in)
1-1/8
Includes Filter
No
Description
Breather Vent
Fitting Connection
1/4" NPT
Dim A (in)
1
Includes Filter
Yes
Description
Breather Vent
Fitting Connection
3/8" NPT
Dim A (in)
1
Includes Filter
Yes
Description
Breather Vent
Fitting Connection
1/2" NPT
Dim A (in)
1-1/8
Includes Filter
Yes
-
MaterialBrass
-
FilterPorous Bronze 40-Micron
-
Maximum Operating Temperature240°F / 115°C
