N and NS Oilers - Wick Feed Oilers

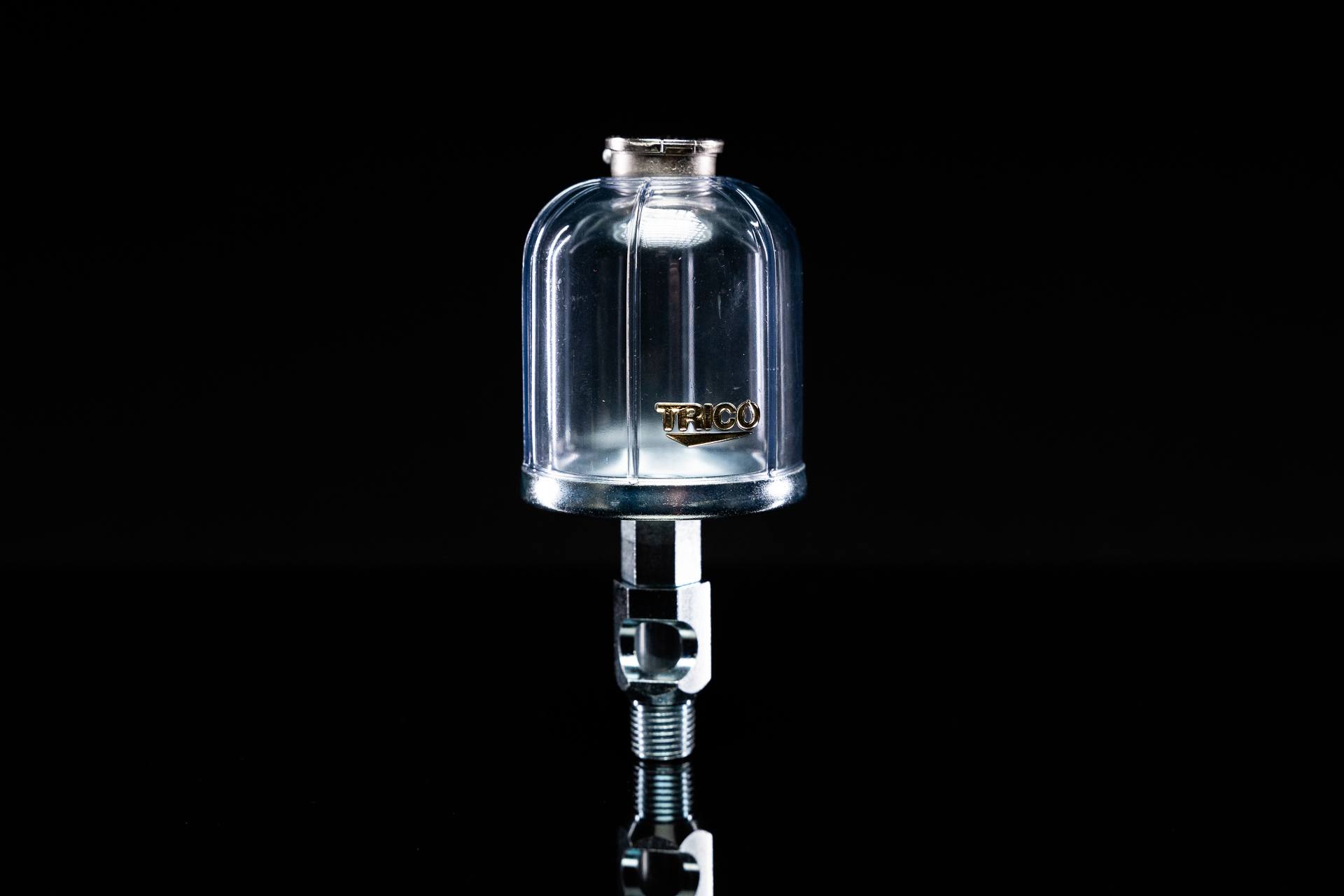

N and NS Vari-Feed Wick Oilers are used to provide a controlled amount of oil to a bearing or other machinery part. The principle of delivery combines gravity feed with capillary action in the wick to provide a constant feed rate of oil regardless of the fill level in the reservoir. Feed rate is determined by the viscosity of the oil and the type of wick being used.
![](/getmedia/02cd34a9-ba58-45a3-9b52-a1071dd3e467/n-ns-oilers-wick-feed-main.jpeg?width=1920)
Feature
Adjustable
The feed rate is constant and adjustable only by changing to a different wick. Five wick speeds are available and color coded for easy replacement or installation. A multi-pack of different wick speeds is included with each oiler.
Feature
Oil Sight Window

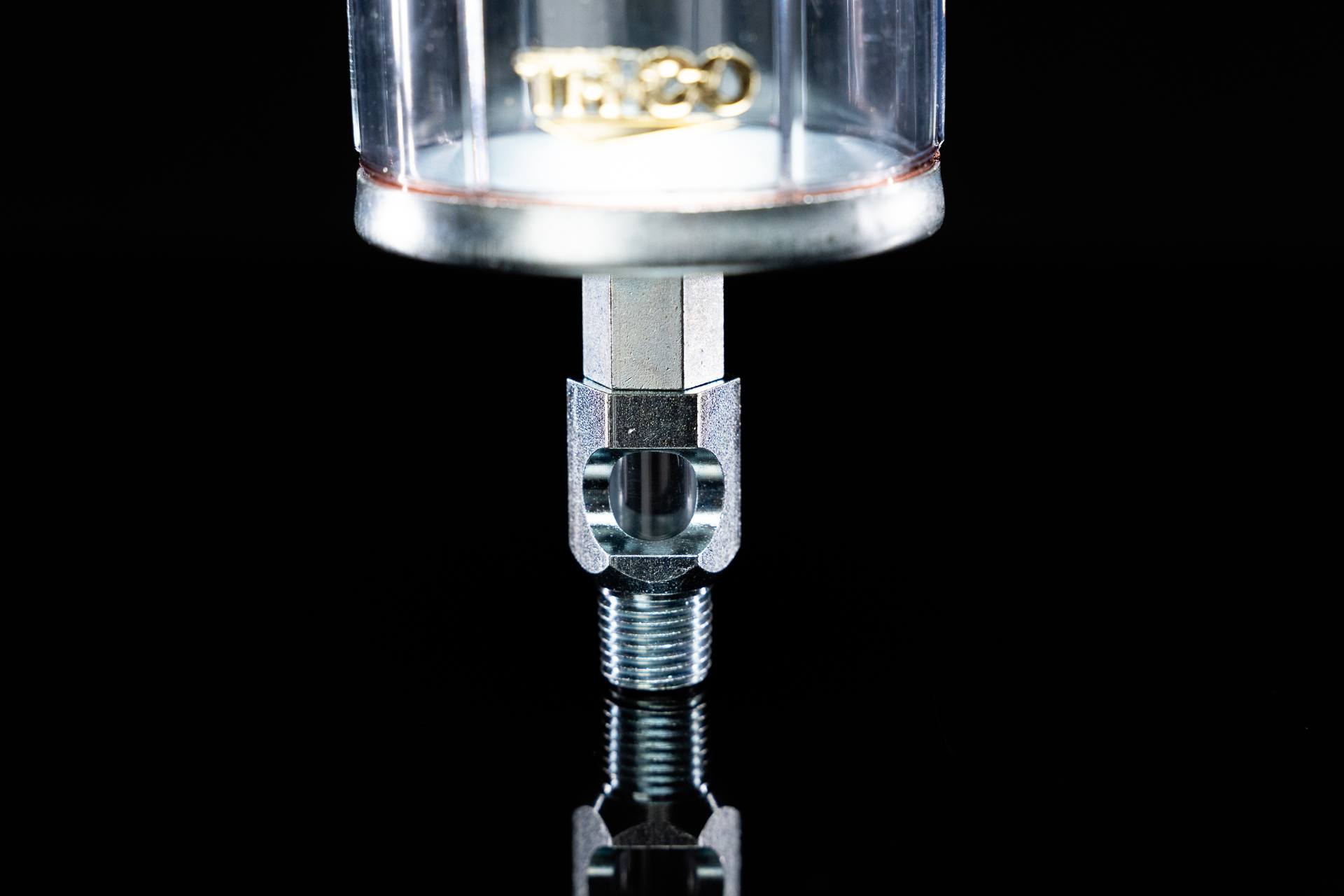

An oil sight is available on NS models for visual indication of oil flow.
Additional Features
- Durable
Copper brazing of all steel connections provides long life and leak proof design. Plastic reservoirs have reinforcing ribs for long life. Zinc plating resists corrosion.
- Snap Cap
A dust proof cap keeps lubricant protected.
- Continuous Flow
The N and NS Vari-Feed Wick Oilers provide a continuous deliver of oil with no shut-off capability.
Other Specs
Model | Description | Style | Capacity | Connection (NPT) | A Dimensions (in) | B Dimensions (in) |
---|---|---|---|---|---|---|
30742 | Wick Oiler | Type N | 4 oz | 1/4 | 2-5/16 | 3 |
30782 | Wick Oiler | Type N | 8 oz | 1/4 | 2-5/8 | 4 |
30842 | Wick Oiler | Type NS | 4 oz | 1/4 | 2-5/16 | 3 |
-
Max. Operating Temp.165ºF Continuous
-
ReservoirButyrate Plastic
-
Oil SightAcrylic
-
Sight GasketsBuna-N
-
WickingWire Cored Cotton
-
MaterialSteel and Brass
-
FinishBright Zinc Plated
