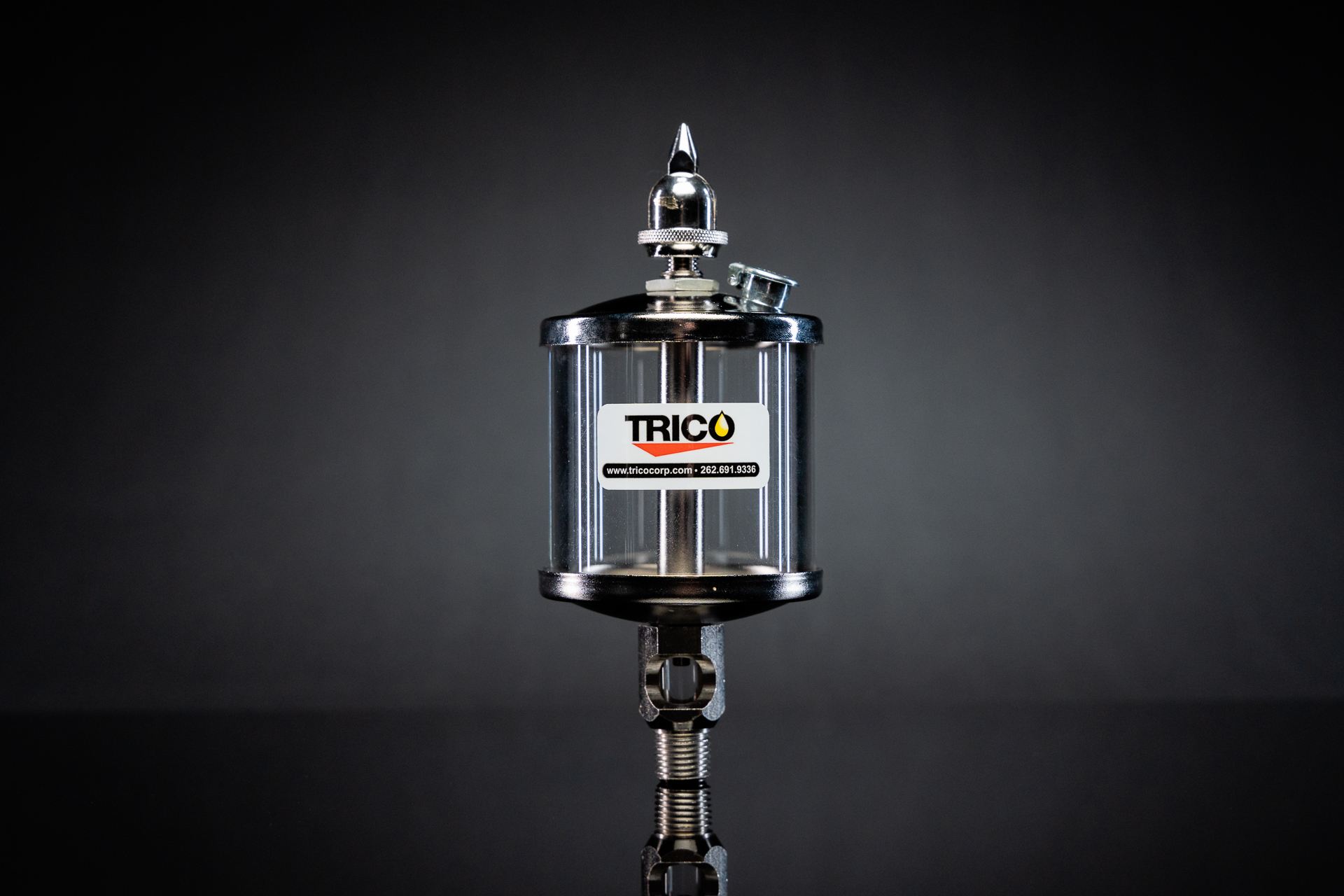

KG Oilers
The KG Gravity Feed Oilers are designed for heavy-duty, high-temperature lubricating applications. In bearing or gear lubrication, the KG Oilers provide dependable lubrication in the most demanding environments.
Feature
Toggle Switch
A 3-position toggle switch provides easy on-off control and a flushing option to avoid dry start-ups. The knurled adjustment knob allows for easy fine tuning of drip rates. The switch is then threaded down to lock the adjustment knob in place for consistency.
Feature
Drip Rate
A vented sight chamber ensures proper operation when used with tight or high-speed bearings.
Additional Features
- Dependable Design
Copper brazing of all steel connections provides long life and leak proof design.
- Durable
Nickel plating offers superior corrosion resistance
- Heavy Wall Reservoirs
Heavy wall glass reservoirs and sight chambers operate continuously at 250ºF, ideal for high temperature applications.
Other Specs
| Model | Description | Capacity | Connection | Dim A (in) | Dim B (in) |
|---|---|---|---|---|---|
| 37011 | KG Oiler | 1 oz. | 1/8 NPT | 1-5/8 | 3-1/4 |
| 37012 | KG Oiler | 1 oz. | 1/4 NPT | 1-5/8 | 3-1/4 |
| 37013 | KG Oiler | 2.5 oz. | 1/8 NPT | 2-1/8 | 4 |
| 37014 | KG Oiler | 2.5 oz. | 1/4 NPT | 2-1/8 | 4 |
| 37015 | KG Oiler | 5 oz. | 1/8 NPT | 2-5/8 | 4-5/8 |
| 37016 | KG Oiler | 5 oz. | 1/4 NPT | 2-5/8 | 4-5/8 |
| 37017 | KG Oiler | 5 oz. | 3/8 NPT | 2-5/8 | 4-5/8 |
| 37018 | KG Oiler | 10 oz. | 1/4 NPT | 3-1/8 | 5-3/8 |
| 37019 | KG Oiler | 10 oz. | 3/8 NPT | 3-1/8 | 5-3/8 |
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
Description
Capacity
Connection
Dim A (in)
Dim B (in)
-
Max. Operating Temp.250ºF Continuous
-
ReservoirHeavy Wall Heat Resistant Glass
-
Oil SightHeavy Wall Heat Resistant Glass
-
GasketsBuna-N
-
MaterialsHeavy Gauge Steel
-
FinishBright Nickel Plate
-
Needle ValveSteel
