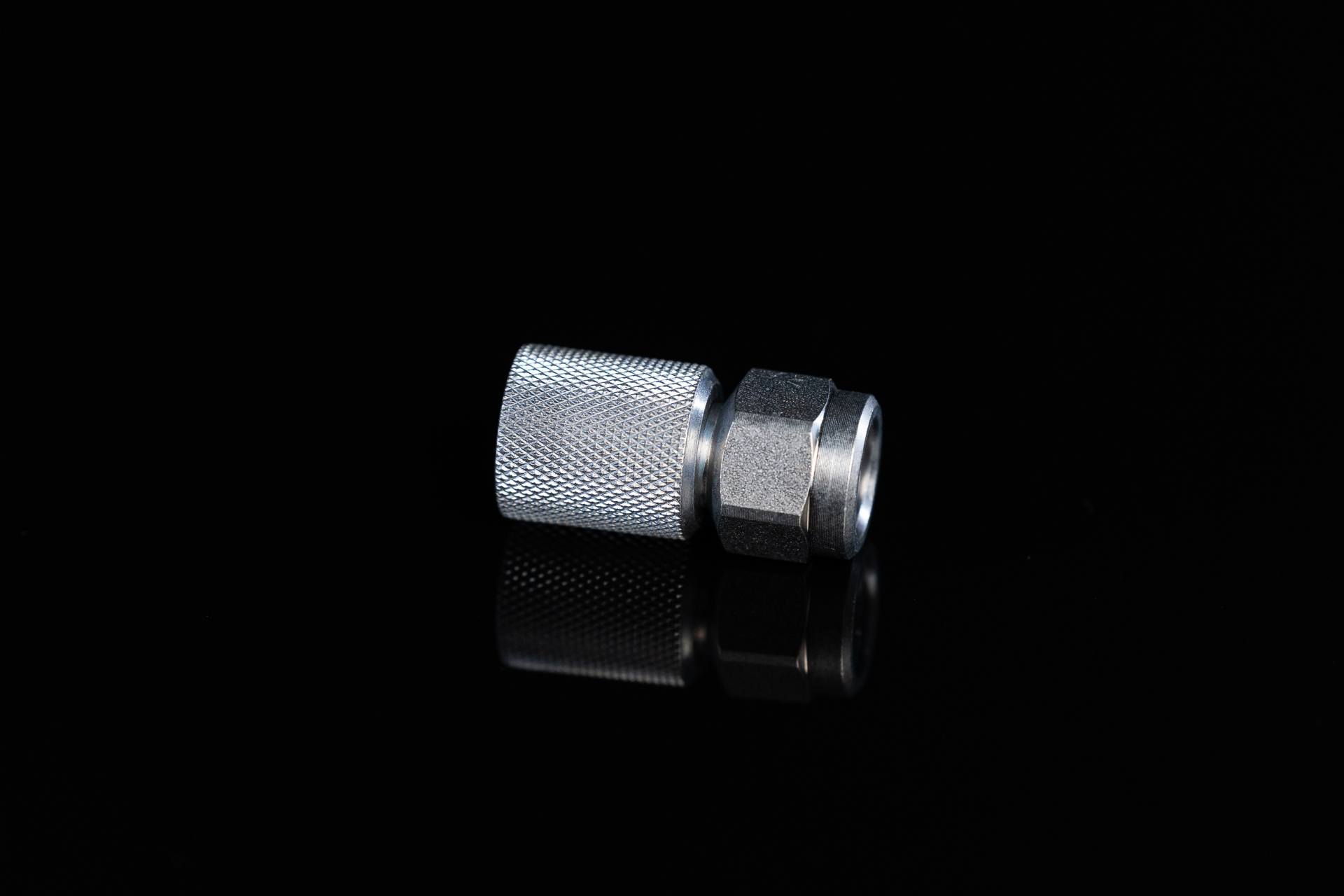

Gauge Adapter

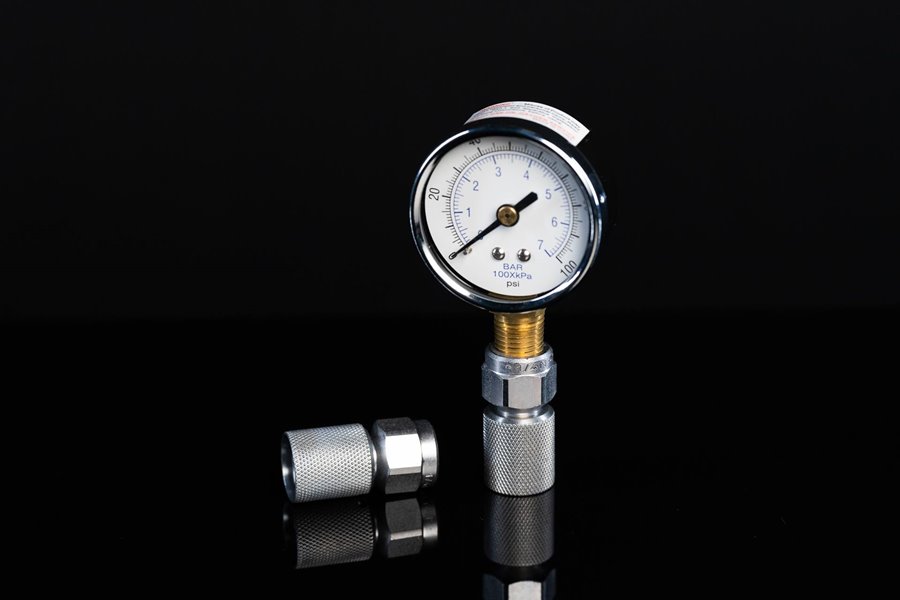

Gauge Adapters are used in conjunction with Oil Sample Ports to attach pressure gauges for troubleshooting purposes.
Additional Features
- Variety
- Available in two thread sizes.
- Convenience
- Measure pressure directly from lubricating oil while equipment is running.
- Contamination Control
- Minimizes introduction of contamination to system.
Other Specs
| Model | Description | Port Connection | Dim A | Dim B | Material |
|---|---|---|---|---|---|
| 36107 | Gauge Adapter (1/4" NPT Female) | 1/4" NPT Female | 1/4" NPT Female | M16 x 2 | Carbon Steel |
Description
Gauge Adapter (1/4" NPT Female)
Port Connection
1/4" NPT Female
Dim A
1/4" NPT Female
Dim B
M16 x 2
Material
Carbon Steel
-
Maximum Working Pressure9000 PSI (630 bar)
-
Maximum Working Pressure 9000 PSI (630 bar) Connect Under Pressure5800 PSI (400 bar)
-
Check Valve BallStainless Steel
-
Maximum Operating Temperature-4ºF to 392ºF
