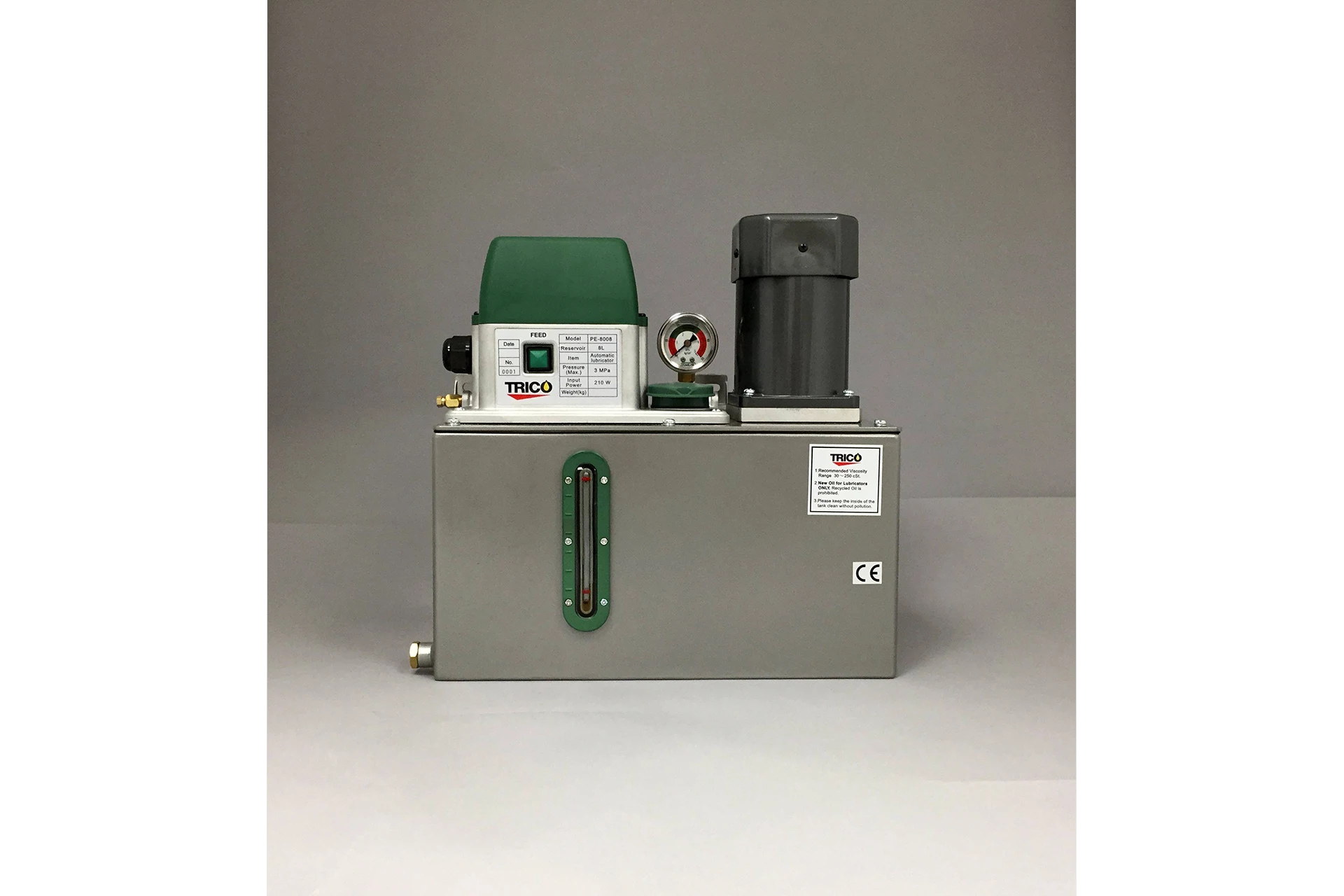

Piston Oil Lubrication Systems

Piston Oil Lubrication Systems are used on industrial machinery like CNC machine centers, lathes, grinding machines, plastic injection machines, forging machines, and woodworking machines. They use a piston lubricator, piston distributors and accessories like piping and fittings to lubricate points with specific amounts of lubricant.

Contact Us to Purchase

Feature

PE-60 Series Pumps

The PE-60 Series Pumps are ideal for medium-sized machinery with no more the 16 lubrication points and 3 meters from the pump.

Feature

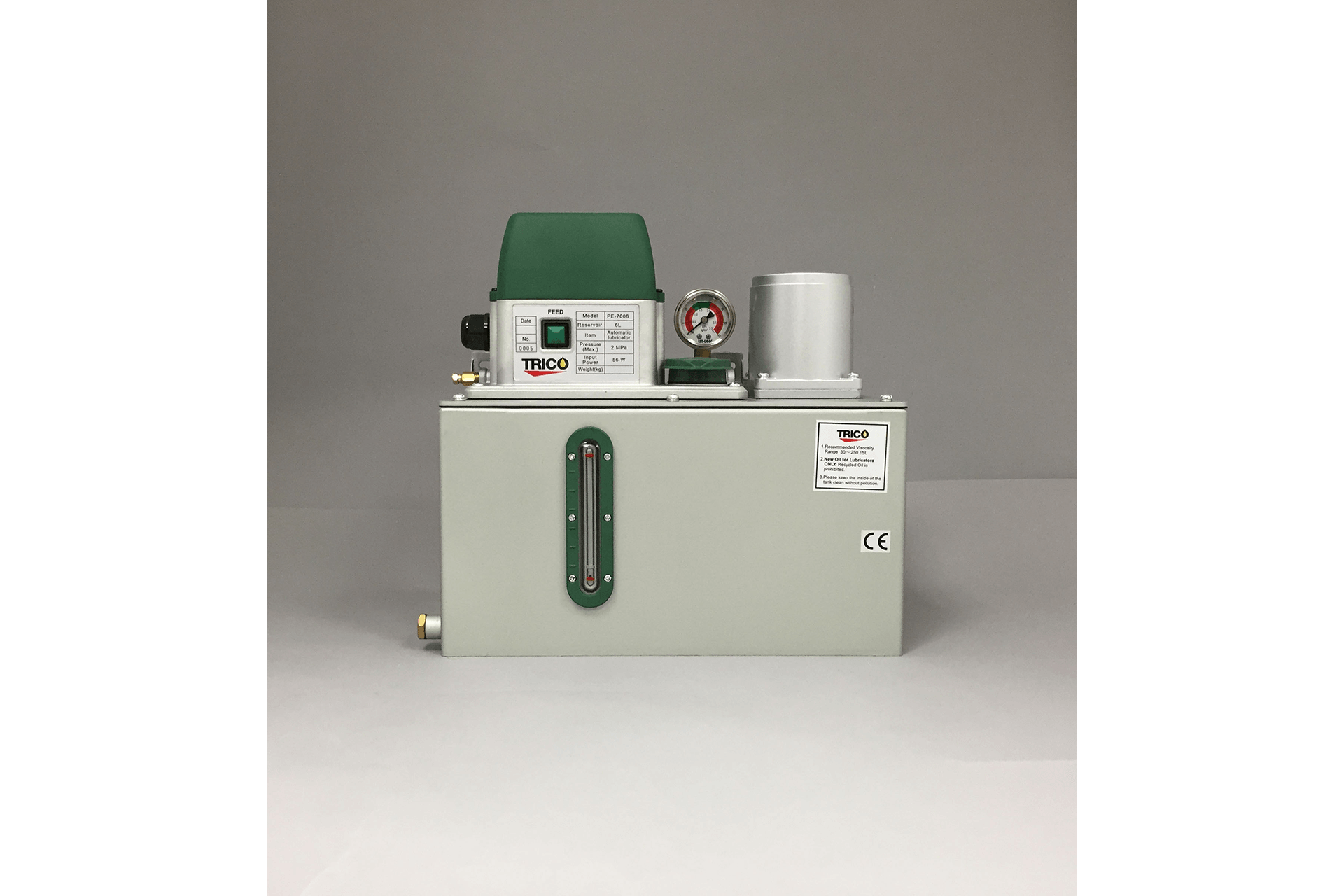

PE-70 Series Pumps

The PE-70 Series Pumps are ideal for large-sized machinery with no more the 25 lubrication points and 4.5 meters from the pump.

Feature

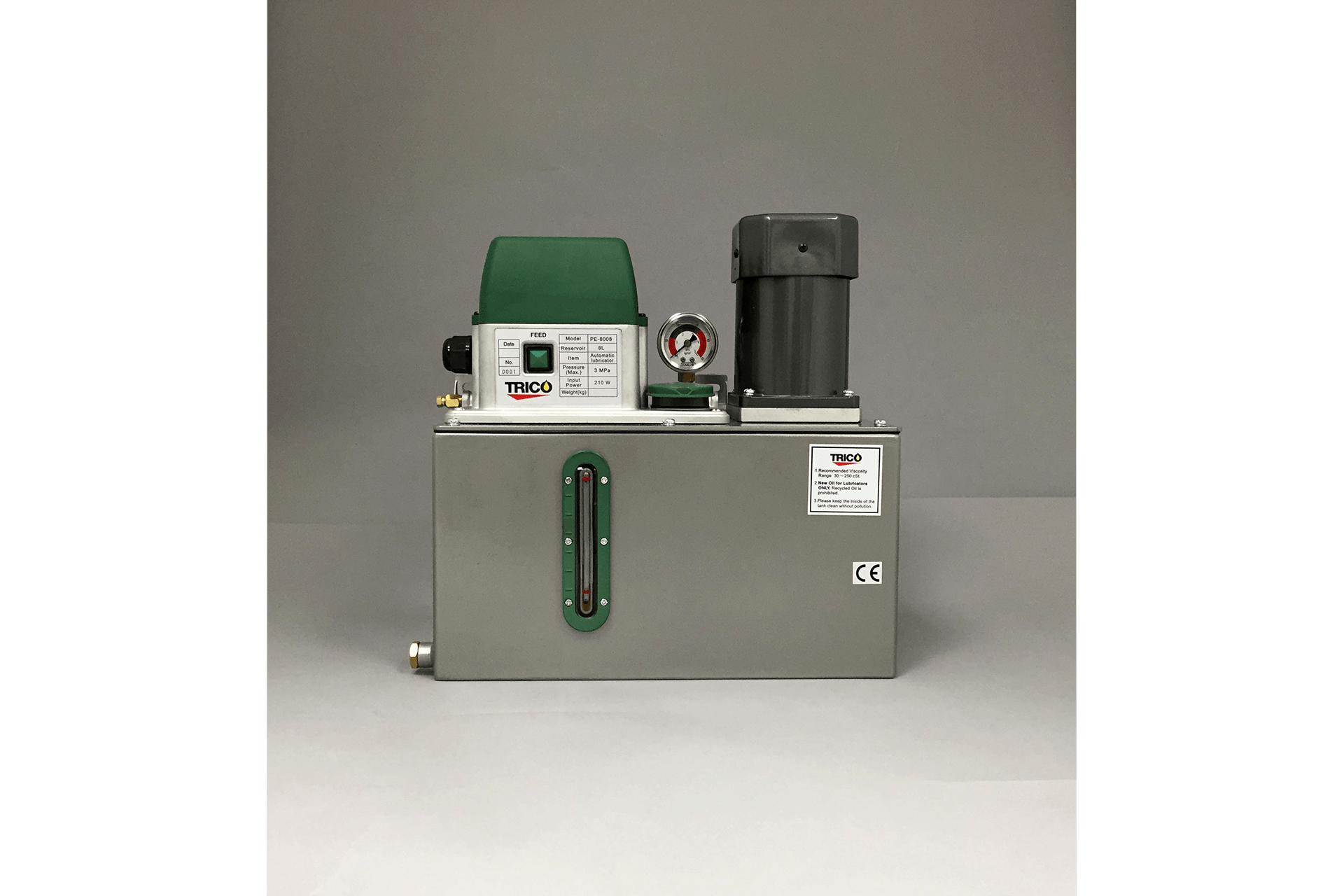

PE-80 Series Pumps

The PE-80 Series Pumps are ideal for large-sized machinery with no more the 30 lubrication points and 5.5 meters from the pump.

Other Specs

Model Description Output Volume (cc/min) Reservoir Capacity (liters) Reservoir Material Direction of Output
PE-6003-L Piston Pump 150 3 Plastic Left
PE-6003-R Piston Pump 150 3 Plastic Right
PE-6004-L Piston Pump 150 4 Metal Left
PE-6004-R Piston Pump 150 4 Metal Right
PE-6006-L Piston Pump 150 6 Metal Left
PE-6006-R Piston Pump 150 6 Metal Right
PE-7006 Piston Pump 150 6 Metal Left
PE-7008 Piston Pump 150 8 Metal Left
PE-8008 Piston Pump 600 8 Metal Left
