Gearbox Base Kits

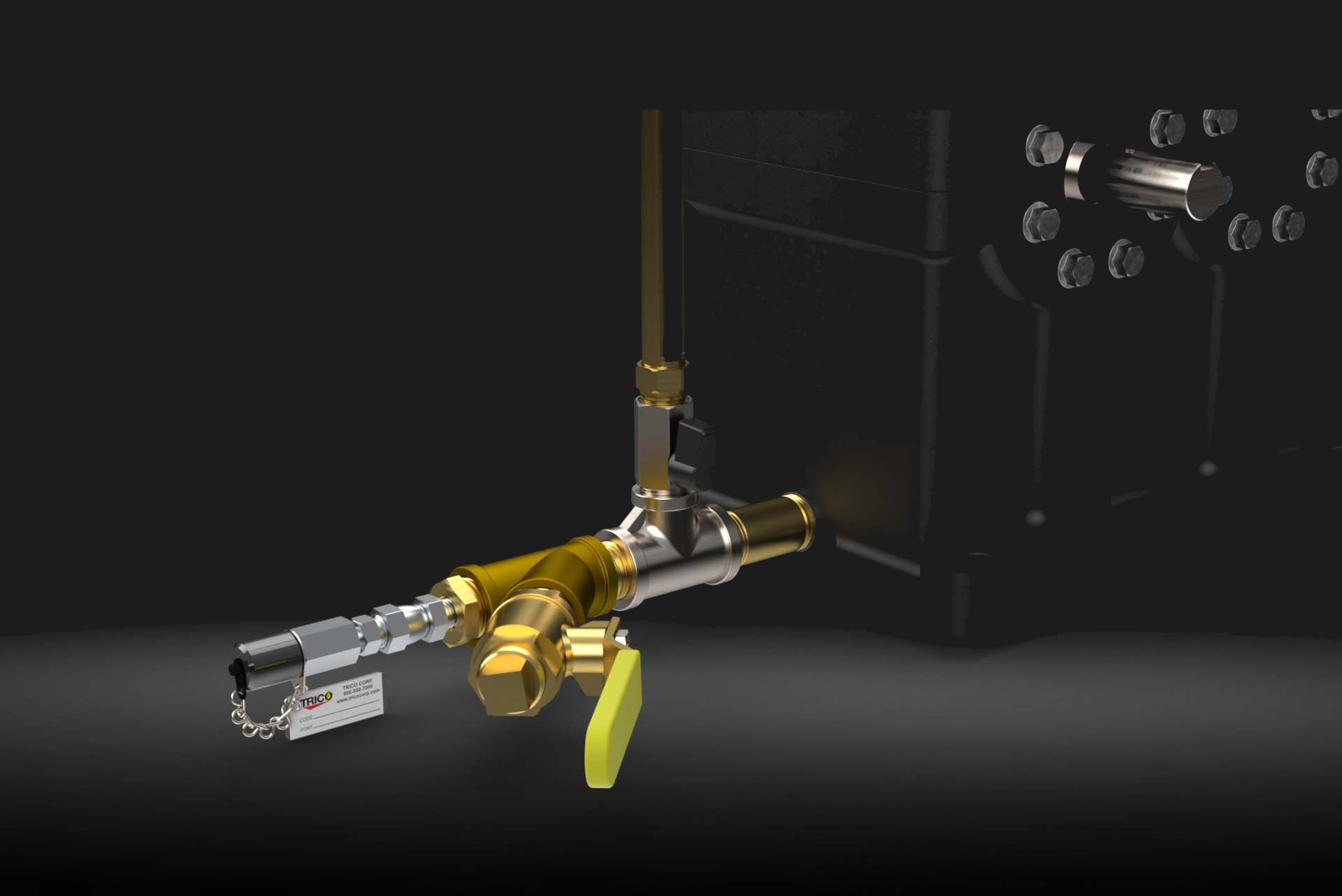

Gearbox Installation Kits are designed to be adapted to fit a variety of different manufactured gearbox types and mounting positions. Kits allow for identification of proper oil level in the gearbox, reduce contamination by allowing desiccant breather filtration, provide quick-disconnect ports to allow filtering with filtration equipment, and has an oil-sampling port designed for high-viscosity oils.

Contact Us to Purchase

Feature

Contaminant Exclusion

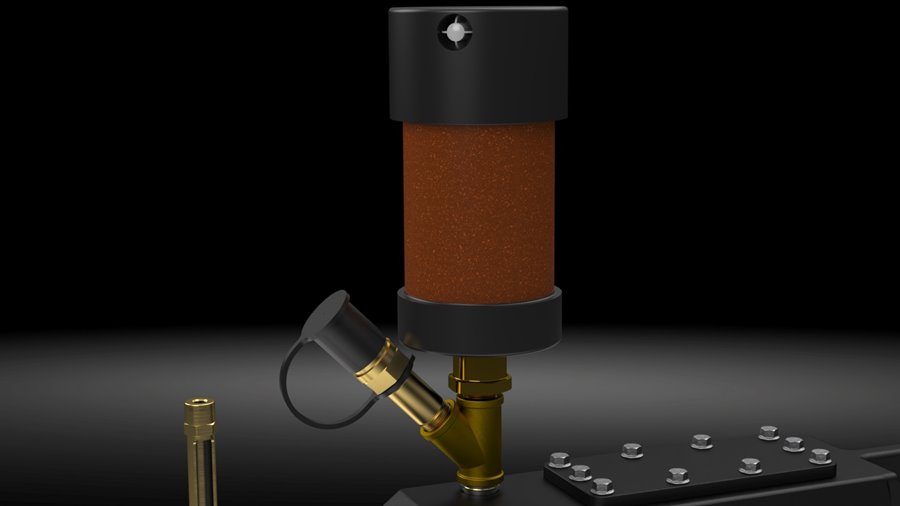

A Watchdog Extreme Humidity Desiccant Breather is installed to protect your equipment from atmospheric particulate and moisture ingression as well as removing moisture residing in the internal headspace.

Additional Features

Kit Includes
Gearbox Base Kits contain fittings and connections. A kit allows for different sight glass sizes to be installed. However, it requires ordering a Gearbox Sight Glass in addition to the Gearbox Base Kit.

Other Specs

Model Description MC Fitting A MC Fitting B
40020 Gearbox Base Kit 3/4" MNPT 3/4" MNPT
40021 Gearbox Base Kit 3/4" MNPT 1/2" MNPT
40022 Gearbox Base Kit 3/4" MNPT 3/8" MNPT
40023 Gearbox Base Kit 1/2" MNPT 1/2" MNPT
40024 Gearbox Base Kit 1/2" MNPT 3/8" MNPT
40028 Gearbox Base Kit 3/8" MNPT 3/8" MNPT

How to Take an Oil Sample for Analysis

How to Install a Trico Gearbox Kit

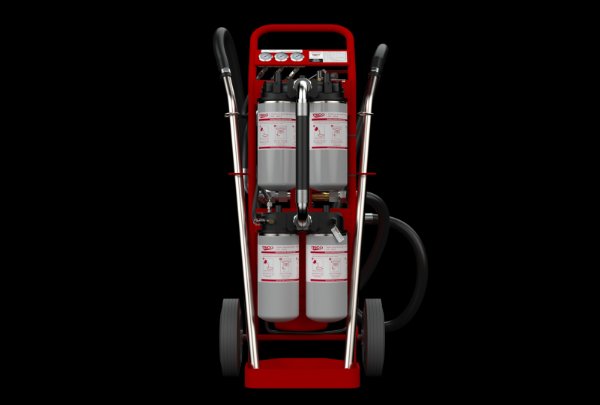

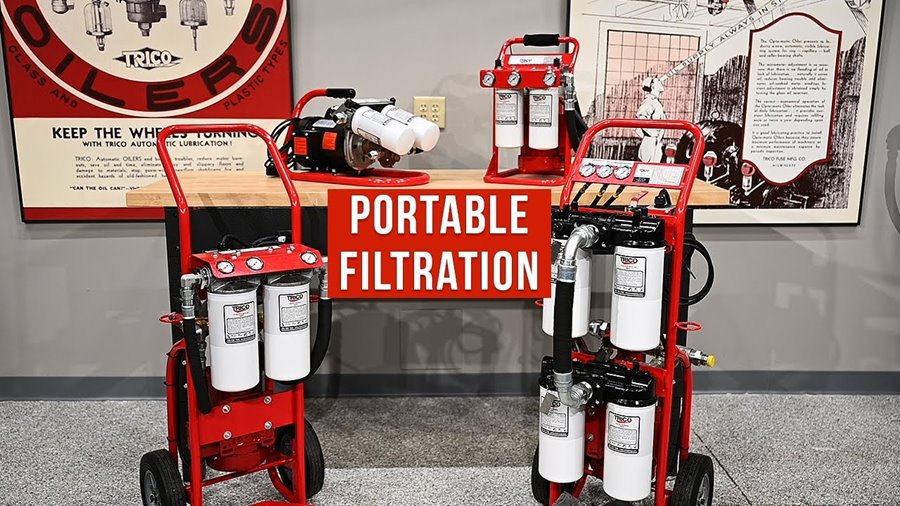

How to Select a Portable Filtration System
